Viewing the Prediction Results in 2D

Display the power results using the 3D ray tracing (SRT) model.

  1. In the tree, expand Results: Propagation and click Power.
  2. View the power prediction results in the 2D view.

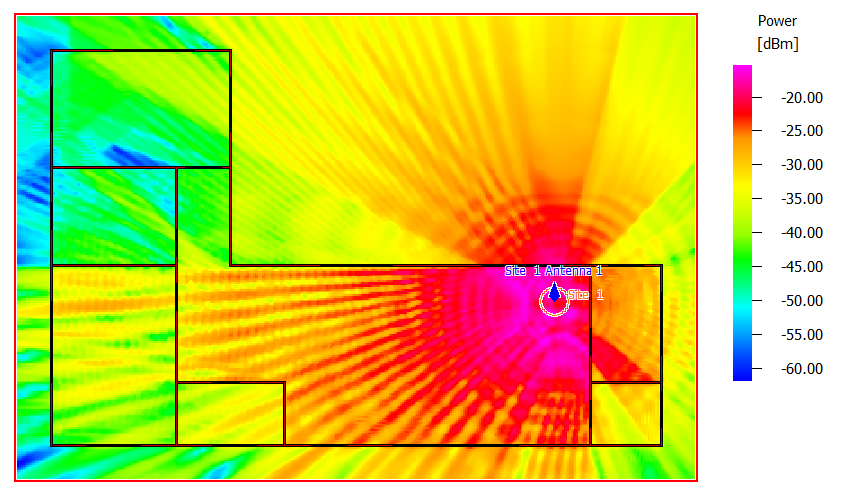

    Figure 1. Prediction of received power using the 3D ray tracing (SRT) model.


    Note:
    • The effect of diffraction around a corner (indicated in red).
    • The deepest shadows are now less deep.
    • Fields have more ways to reach all locations.
The multi-wall model (COST 231) was too pessimistic in its prediction.
