Viewing the Prediction Results in 3D

In ProMan, the indoor database can be viewed in 3D to validate the physical structure and results.

  1. View the model and results in 3D.
    1. On the Edit toolbar, click the 3D View icon.

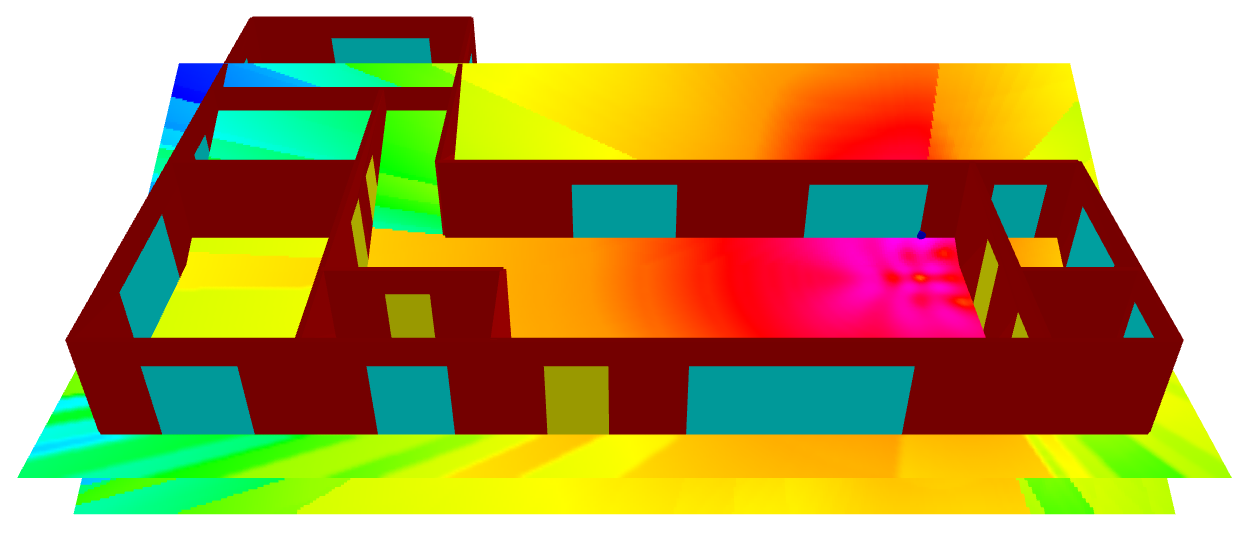

      Figure 1. A 3D view of the model with power prediction results. The default prediction planes as well as the angled prediction plane are displayed.


  2. View the results on the angled prediction plane.
    1. On the Settings menu, click Local Settings.
    2. On the Display Settings dialog, click the Layout tab.

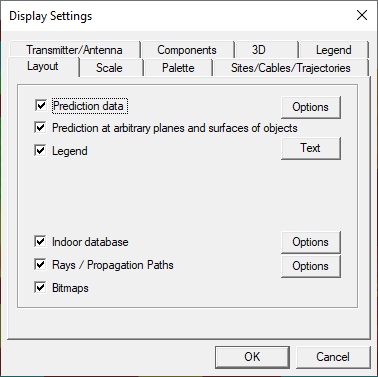

      Figure 2. The Display Settings dialog.


    3. Clear the Prediction data check box to disable the default prediction results and only show the results on the angled prediction plane.

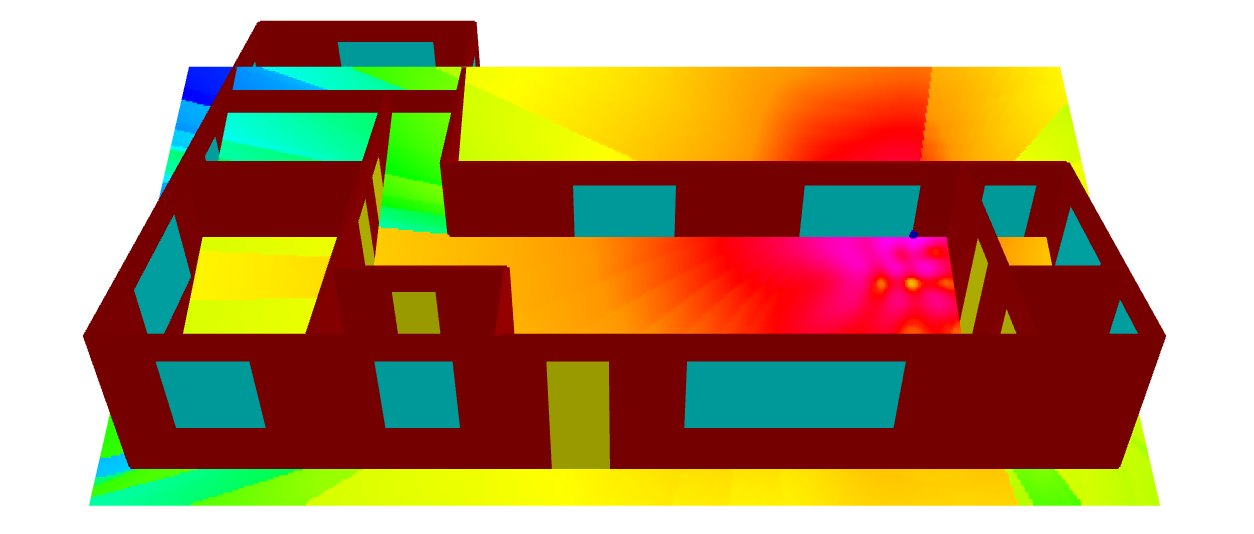

    Figure 3. A 3D view of the model with power prediction results displayed only on the angled prediction plane.


  3. Draw horizontal walls and objects to verify that the Wi-Fi router is below the ceiling.
    1. On the Settings menu, click Local Settings.
    2. On the Display Settings dialog, click the Layout tab.
    3. In the Indoor database field, click Options.
    4. On the Display of Walls dialog, under 3D Display, select the Draw horizontal walls/objects check box.

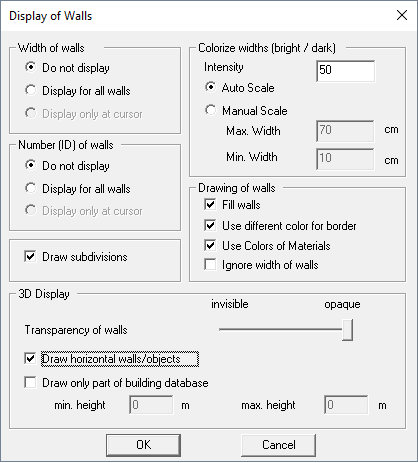

      Figure 4. The Display of Walls dialog.

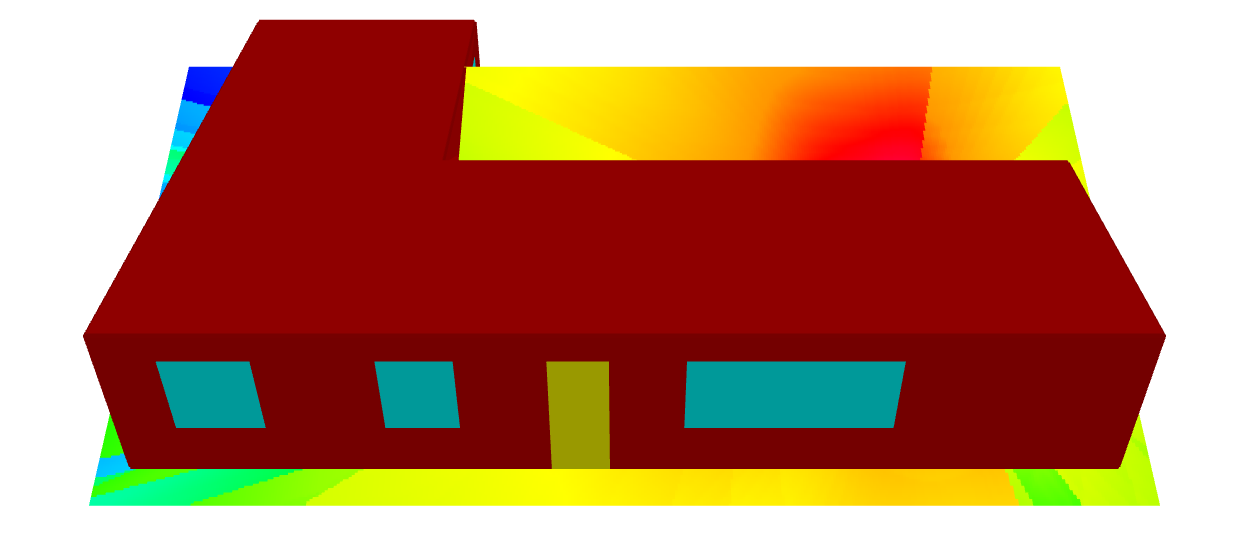

      Figure 5. A 3D view of the model with power prediction results. on the angled prediction plane. Horizontal objects such as the floor and roof are visible.


  4. Return to the 2D view of the model.
    1. On the Edit toolbar, click the 3D View icon again to disable the 3D view.
