Insulation

Definitions

Here are all the available insulation types.

Table 1. Insulation types
Label Tooltip, note, formula
Wire Insulation thickness of the wire
Liner Insulation thickness of the liner
Phase separator Insulation thickness of the phase separator
Impregnation Insulation spread inside the slot
Impregnation goodness Quality of impregnation (percentage of winding impregnation)

Illustration

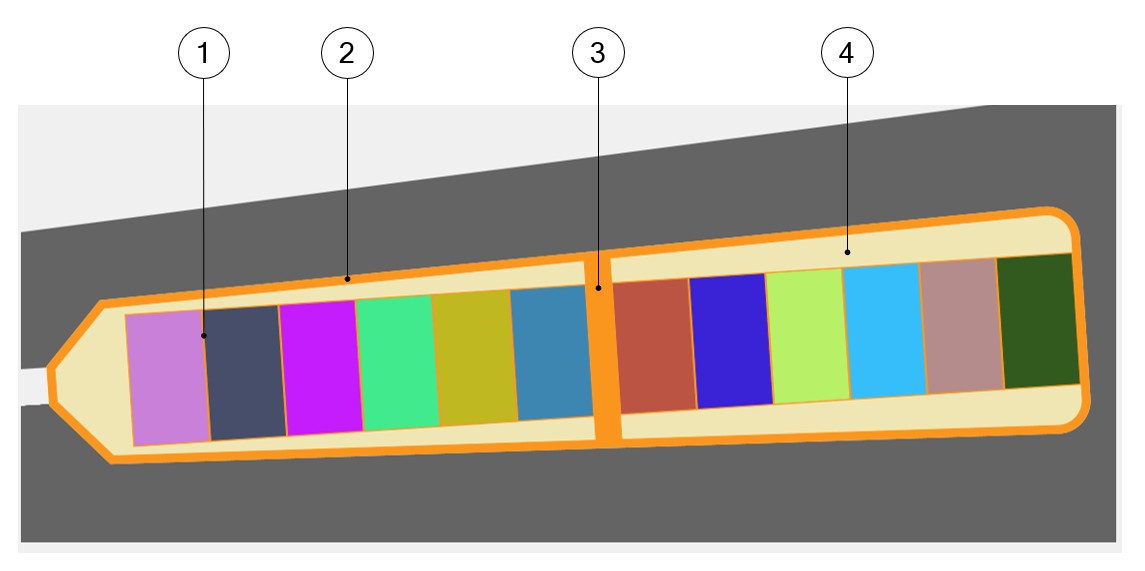

Table 2. Illustration of winding insulation for rectangular shape type wire


1 Insulation thickness of the wire
2 Insulation thickness of the liner
3 Insulation thickness of the phase separator
4 Presence of impregnation
