End winding

Definitions

This part characterizes the end-winding and the resulting conductor dimensions.

For additional information refer to the sections dedicated to the coil and conductor settings and End-winding topology.

Table 1. Definitions
Label	Tooltip, note, formula
End-winding topology	End-winding topology: Y-shape only
C.S. total extension	Connection side total extension.
C.S. straight extension	Connection side straight extension
O.C.S. total extension	Opposite connection side total extension.
O.C.S. straight extension	Opposite connection side straight extension.

Note: One topology is available: Y-shape end-winding.

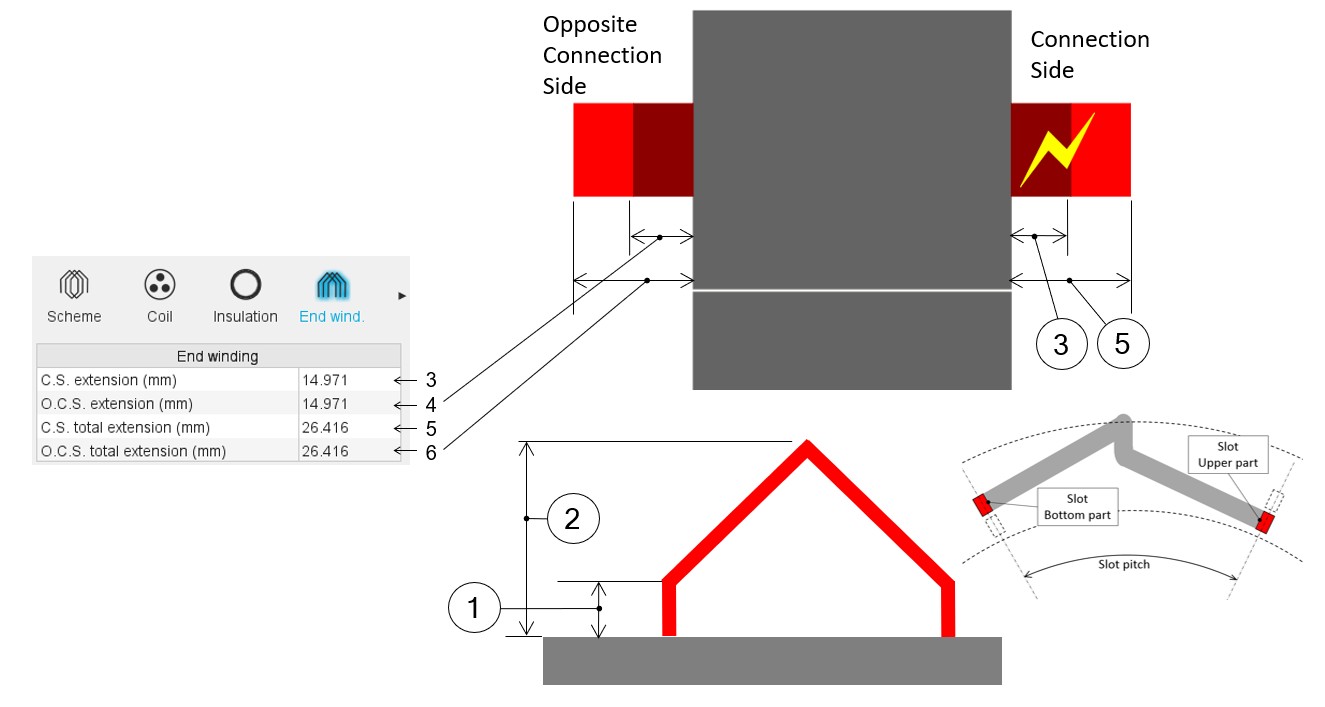

Table 2. End-winding topology and dimensions - Y-shape end-winding

1	Straight extension of the Y-Shape end-winding topology = User input parameter
2	Total extension of the Y-Shape end-winding topology = User input parameter
3	Definition of the connection side straight extension (ref. 3)
4	Definition of the opposite connection straight extension (ref. 4)
5	Definition of the connection side total extension (ref. 5)
6	Definition of the opposite connection side total extension (ref. 6)
