Viewing the Results

View and post-process the results in POSTFEKO.

Compare the gain (in dB) of the requested far field patterns on a polar plot.

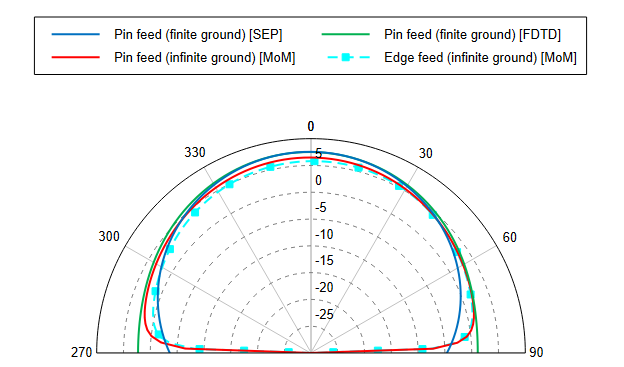

Figure 1. A polar plot of the requested E plane radiation pattern for the microstrip patch models in POSTFEKO.

Note: Observe the impact of the different feeding mechanisms on the radiation pattern.

The best design for manufacturability (DFM) is the model using the finite ground. The finite ground version requires more time to solve compared to the infinite plane version.
