Viewing the Results

View and post-process the results in POSTFEKO.

View the gain (in dB) of the requested far field pattern using a polar plot.
Compare the far field pattern of the finite antenna array with the equivalent full MoM model.

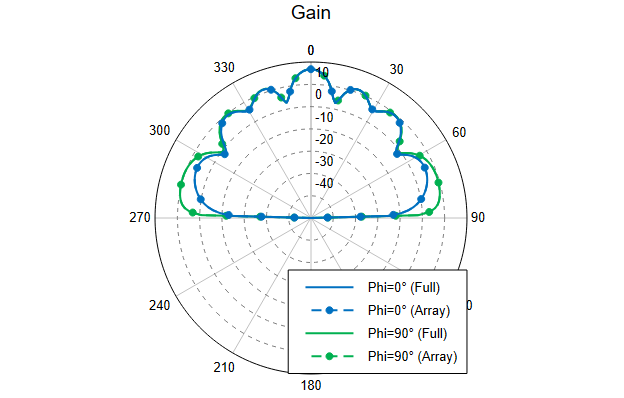

Figure 1. A polar plot of the far field gain (dB) viewed in POSTFEKO. The gain of the finite antenna array is compared to the equivalent full MoM model.

Note: The finite array tool simplifies array construction. For larger arrays, the performance improvement of the DGFM are more pronounced.
