Compare the gain (in dB) of the requested far field patterns on a polar
plot.

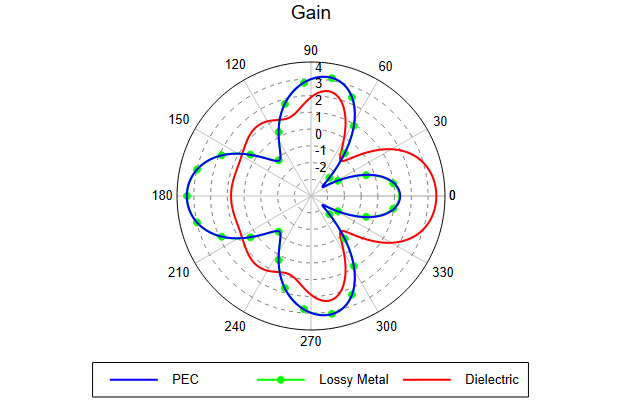

Figure 1. A polar plot of the requested radiation patterns for the dipole and
cuboid configurations in POSTFEKO.
Note: View the pronounced scattering effect of the cuboid on the dipole
radiation pattern. The dielectric cube results in a gain increase in the
direction of the cube.
