Compose-1100: The Compose Debugger

Tutorial Compose-1000 introduced basic operations to create, edit, and run a simple OML script in Compose. Compose-1100 introduces the debugger.

Launch Compose

From the Start menu, click All Programs > Altair 2023.1 > Compose 2023.1.

This launches Compose. Notice that by default, a file named Untitled1.oml exists in the Editor window.

By default, the application is in Authoring Mode, where scripts can be edited and executed interactively.

Start the Debugging Mode

  1. From the File menu, select Open.
  2. From the Open File dialog, browse to the following folder location: <installation_dir>/tutorials/. Select the file Demo_debugger.oml and click Open.

    This opens a new tab in the Editor window titled Demo_debugger.oml. This tab is now the active tab, indicating that this file is the active file.

  3. Click the Debug icon, , or select the menu item Debug > Start Debugging (F5).

    This turns ON the debug mode. Additional items become active in the toolbar (Step) and additional windows are available. These include the Watch window, Call Stack window, and the Breakpoints window. They can be displayed on demand from the Debug > Windows menu.

  4. From the Debug menu, select Windows > Watch, Windows > Call Stack, and Windows > Breakpoint to display the windows.

Add a Breakpoint and Start Debugging the File.

  1. A breakpoint is added to the debugging session by left-clicking in the margin to the left of the line numbers. Add a breakpoint at line 15.

    A breakpoint is indicated by a red circle in the margin.

  2. Click the Breakpoints tab, located next to the Call Stack tab at the bottom of the GUI. Or, from the Debug menu, select Windows > Breakpoints.

    A breakpoint is now listed and located at line 15.

  3. Begin debugging the file by clicking Run File, , from the Debug toolbar.

    Due to the breakpoint at line 15, the execution of the file stops at line 15. In addition to the red circle indicating the breakpoint at line 15, there is also a blue triangle at this line. The blue triangle indicates that this is the next line to be executed.

Inspect Variable Values Using the Editor and Watch Windows

  1. Variables can also be inspected using the Watch window. The Watch window is located in the lower left corner of the Compose GUI. In the Editor window, using the left mouse button, highlight the variable boo, then drag the variable from the Editor window into the Watch window.

    You can also highlight boo, then right-click to choose Add Selection to Watch.

    The value of boo is currently 3.

  2. During debugging, the Variable Browser always displays the variable’s value in the current scope.
  3. Click the Step Over icon, . The value of boo has changed. This can be verified by the value of boo in the Variable Browser or by inspecting the value in the Watch window.
  4. The blue arrow indicating the next line to be executed is now at line 34. Use Step Over, , to move the execution to the next line.

Enter a Function and Investigate the Call Stack Window

  1. To enter the function foo, click the Step Into icon, .

    Selecting Step Over executes the function foo. If you want to individually execute each line inside the function foo, select Step Into instead.

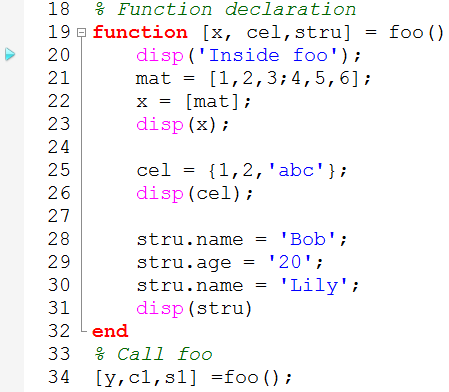

    Once Step Into has been selected, the blue triangle moves to line 20.

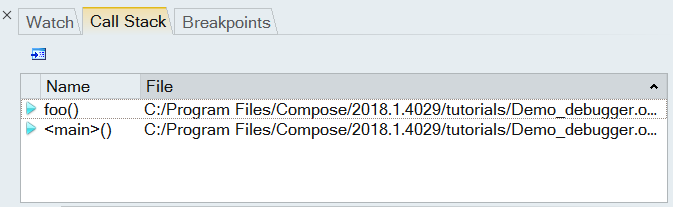

  2. Click the Call Stack window tab. Investigate the contents inside the Call Stack window. The current execution point (line 20) is listed as well as the calling point to the function foo (line 34).

Investigate Variables in a Function Using the Variable Browser and Watch Window.

  1. Click Step Over, , to execute each line, one at a time, until line 23 is reached.
  2. Under the Value column in the Variable Browser, notice the values for mat and x:
  3. Click Step Over, , a few more times until line 26 is reached.
  4. Under the Name column in the Watch window, type the variable name cel.

    The contents of the variable cel are updated in the Watch window. The Type column indicates that the variable cel is a cell and there are three elements in the cell. The values are listed in the Value column. You can also type cel in the OML Command Window to check the elements’ values:

  5. Click Step Over again, , until line 29 is reached.
  6. In the script, line 30 resets the stru’s name from ‘Bob’ to ‘Lily’. As a result, the struct’s name field is updated accordingly.

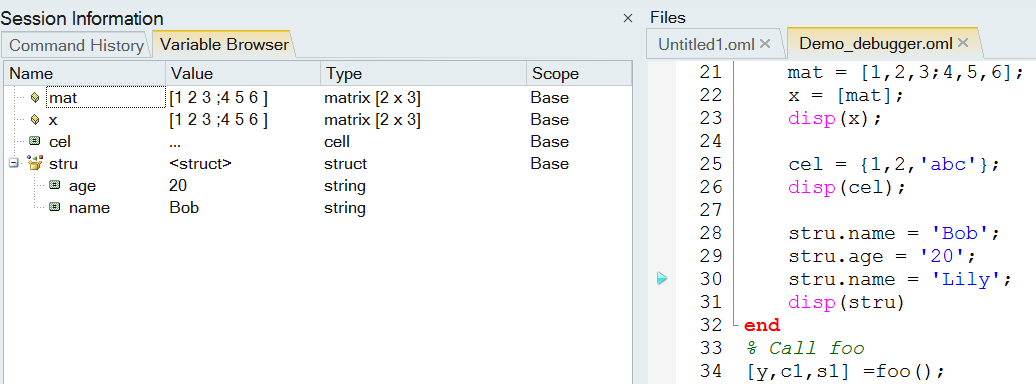

  7. After running line 29, you can view the stru fields by clicking the '+' in front of this struct in Variable Browser. The struct is now expanded and you can see its content.

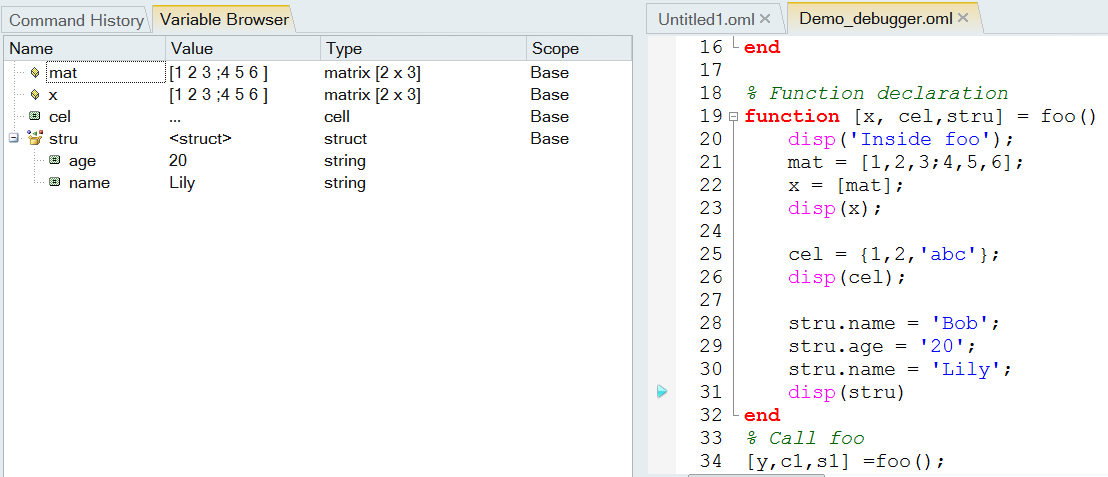

  8. Check the name field again after clicking :
  9. From the Debugging toolbar, click the Step Out icon, , to execute the rest of the function and exit it in a single step. The marker moves to the next execution point in the path, which is at line 37.

Use the Step Until Option on the Debug Toolbar

  1. Scroll down and place the cursor at line 37.
  2. From the Debug Step toolbar, click Step Until, .

    This executes the rest of the lines and stops at the line with the cursor. This is convenient if you do not want to add a breakpoint at a line, as a breakpoint would stop the execution of the code at this line every time. Using Step Until only stops the execution at this line this one time.

  3. Click the Watch window tab to activate it.
  4. Right-click in the Watch window and select Remove All. Select Yes to the message that prompts if you want to delete all entries.

    This clears the Watch window to allow for a clean look at the variables to be inspected.

  5. Enter the variable a in the Watch window. Note its current value.
  6. Click Step Over, , once inside the for loop to observe its value change incrementally in the Watch window.

Add a Condition to the Breakpoint

  1. Left-click on the left margin at line 39 to add a breakpoint. Right-click on the breakpoint to select Condition.

    This opens a dialog box for specifying the break condition.

  2. Type a == 5 and click OK.
  3. Click the Run File icon, , to continue until the execution stops at the breakpoint, which is only when the above condition is met as seen from the Watch window.

Add Another Breakpoint, Enter the Function zoo, and Observe the Call Stack Window.

  1. Add another breakpoint at line 53.
  2. Click Run File, , to execute the rest of the code and stop at line 53, where the breakpoint is located.
  3. Line 53 calls the function zoo and passes the argument 10. Click Step Into, , to enter the function zoo and move the execution point to the first line in the function.
  4. Click Step Over, , twice to move to line 50 (line 50 calls the function foo).
  5. Click Step Into, , to enter the function foo and move the execution point to the first line in the function. This moves the marker for the next execution point to line 20. Observe the Call Stack window. This displays the execution path through all functions to the current marker location. At the top, it shows the inner most function the execution is currently in (function foo), followed by the next outer function, zoo, which is followed by the main function level.

    Also note the blue marker in the editor margins at locations where each of these functions were called. These lines are also displayed in the Call Stack window’s second column. This allows you to find which instance of a function call lead to the current location, if there are multiple instances.

  6. Variable values at this call instance can also be inspected. You may add a variable to Watch window or check value in Variable Browser if you care about the value.

Stop Debugging and Exit the Debugging Mode

  1. From the debugging toolbar, click Stop Debugging, , to stop the current execution.
  2. Press the debug icon, , to exit the Debugging Mode.
  3. This returns the Compose GUI to the Authoring Mode. At this point, you can continue with any authoring mode activities.
