A new export from FluxMotor to Siemens Simcenter Amesim

One of our big targets is to develop and export more and more machine models, like lookup table (LUT), from FluxMotor to system software.

A new area is now dedicated to exporting maps from FluxMotor to Siemens Simcenter Amesim.

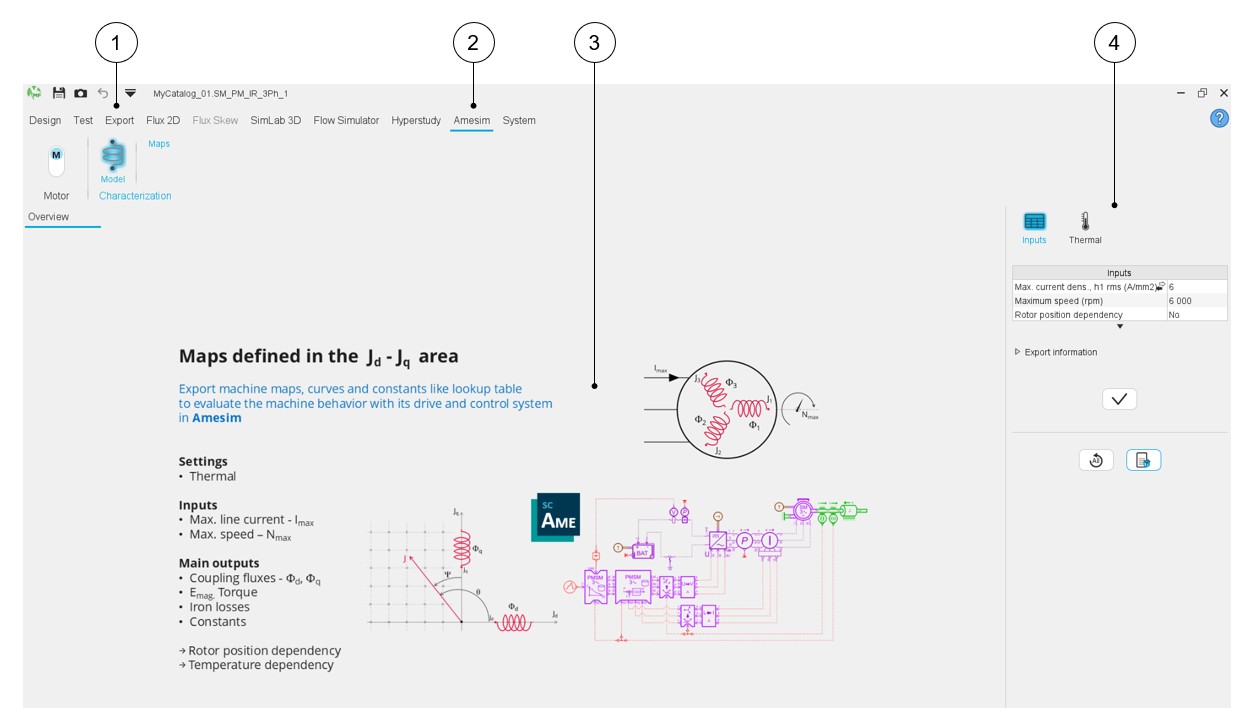

Table 1. FluxMotor – Motor Factory – Export maps to Siemens Simcenter Amesim

1	Export to external software
2	Export to external software: A new export is available to export maps to Siemens Simcenter Amesim
3	Overview to illustrate the test considered to be exported
4	User inputs to define the test conditions

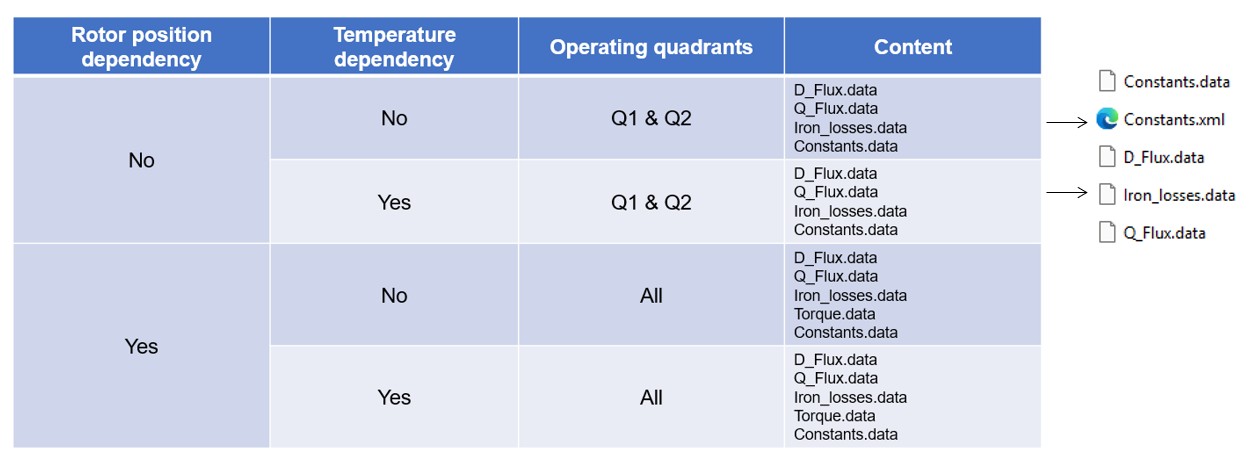

Here are the four types of export available depending on the user inputs

Figure 1. FluxMotor – Motor Factory – Export maps to Siemens Simcenter Amesim The four packages of export and one example of exported files

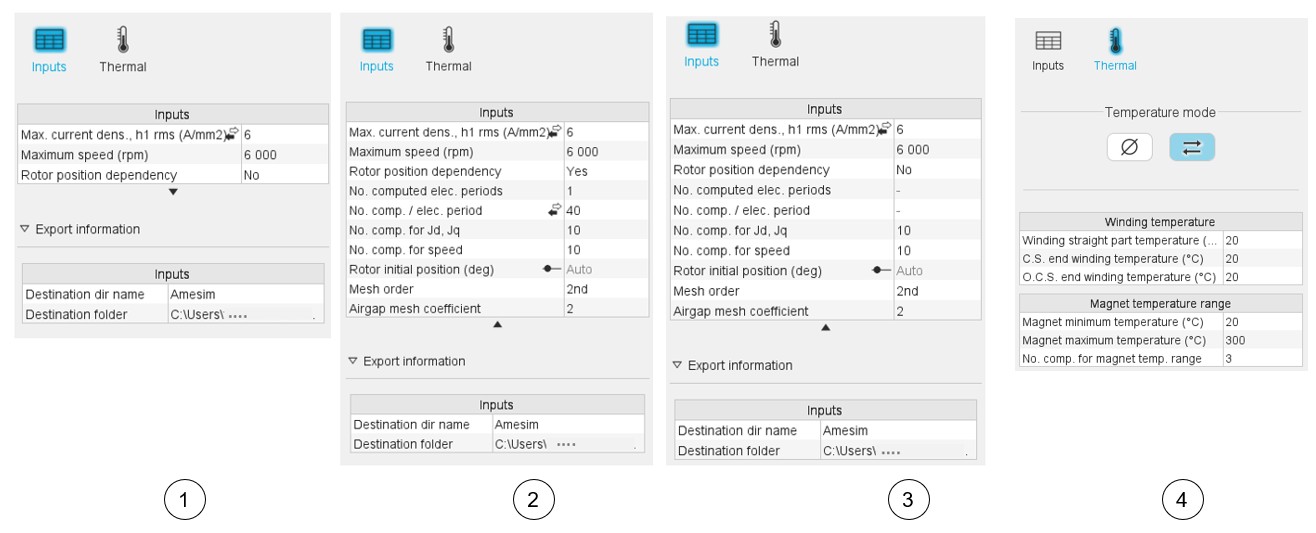

Here are the user inputs to perform the computations of the four packages of data.

Table 2. Export maps to Siemens Simcenter Amesim – User inputs and outputs

1	Standard user inputs.
2	Standard and advanced user inputs – Case to perform computations with rotor position dependency.
3	Standard and advanced user inputs – Case to perform computations without rotor position dependency.
4	Thermal inputs to perform computation with temperature dependency.

Note: Like in the previous version, the users can also export files dedicated to Twin Activate® or PSIMTM, the other system simulation tools, by selecting the Export – System environment.

Warning: The new area dedicated to export LUT is available only for synchronous machines with permanent magnets (SMPM).
