Export

How to export a motor?

It is possible to export one or several motors from the Motor Catalog either in a folder or in a zip file.

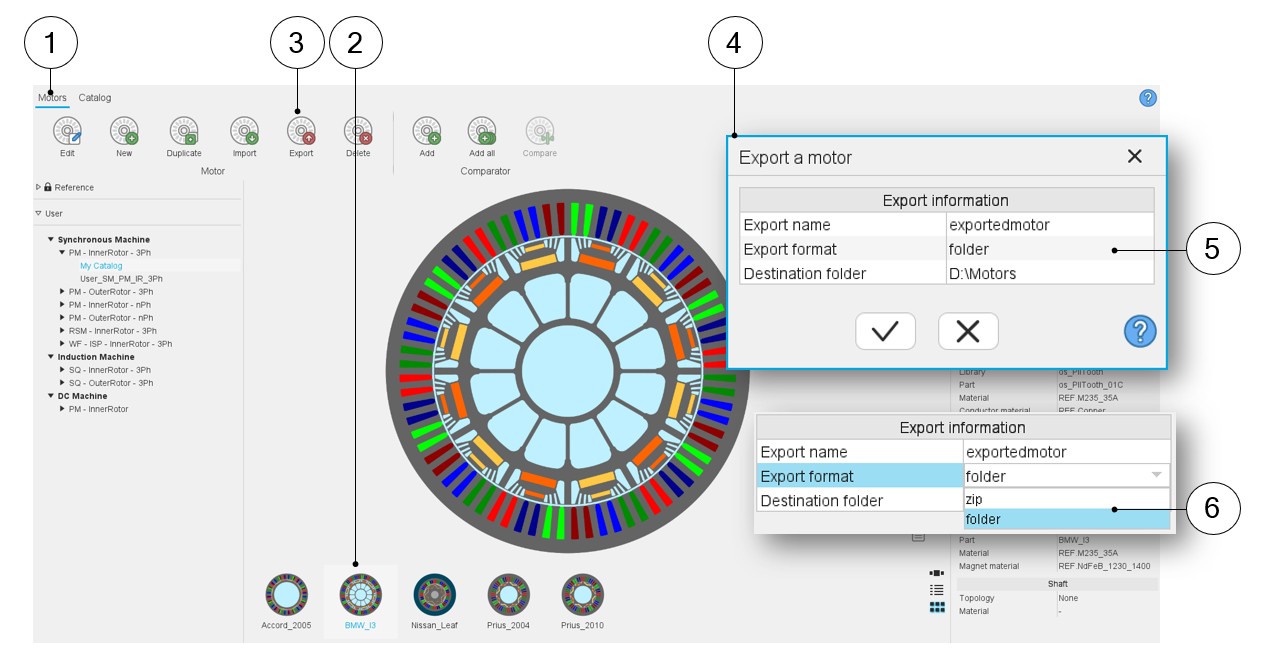

Table 1. How to export motors from Motor Catalog?

1	Selection of the motors area of the Motor Catalog application.
2	Select one or several motor(s) to be exported.
3	Clicking on the icon “Export” opens a dialog box to export motors stored in a folder or in a zip file.
4	Dialog box to give “Export information” for exporting the motors.
5	Export information is: Export name, Export format: either folder or zip, Destination folder.
6	The selected motor(s) can be stored either inside a folder or in a zip file before being exported.
