Duplicate
How to duplicate a motor?
The duplication of a motor is possible only in a user’s catalog. If you select a
reference catalog, the icon "Duplicate" is disabled.
Note: If
the selected catalog is empty, the icon "DUPLICATE" is disabled.
 |
|
|---|---|

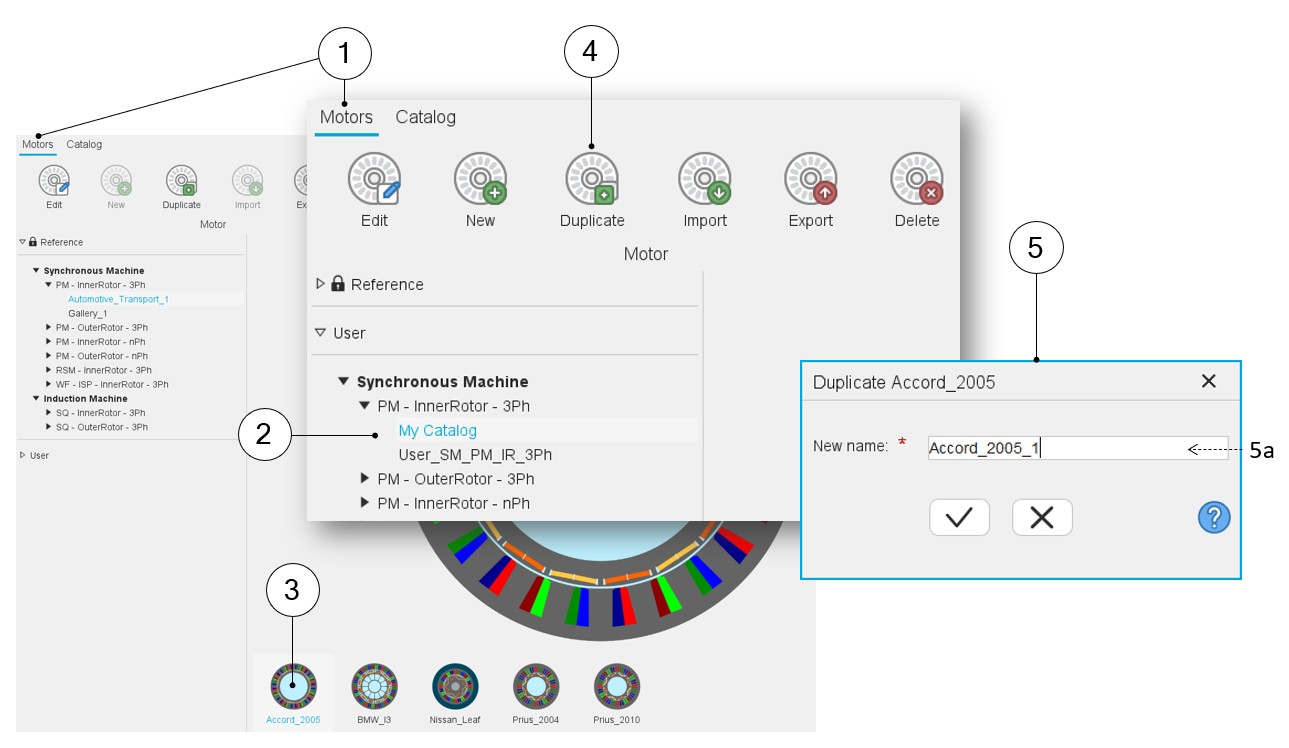

| 1 | Selection of the motors area of the Motor Catalog application. |
| 2 | Selection of a user’s catalog, in which the motor to be duplicated is stored. |
| 3 | Selection of the motor to duplicate. |
| 4 | Click on the icon “Duplicate”. |
| 5 | A dialog box is automatically opened to allow the process of duplication. |
| 5a | Give a name to the new motor. Note: A
default new name is proposed. One must choose a name that is not
already used in the Motor Catalog. |
The new motor previously created is stored in the corresponding catalog. Its general data is displayed in the corresponding tab.
Performance is available only if the dedicated test has been performed (The test datasheet for SM-PM-3Ph machines, for instance).
