SLOT


SLOT design area

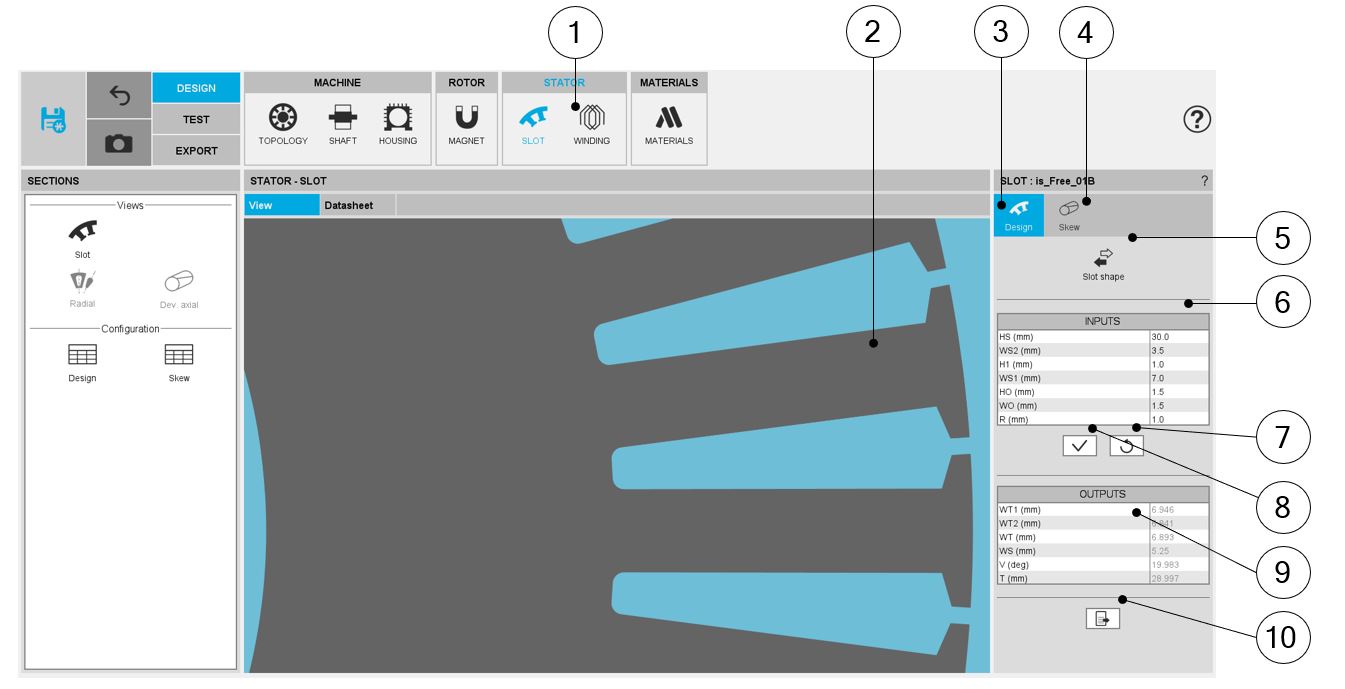

1	Selection of the STATOR subset: SLOT panel (Click on the icon SLOT)
2	Visualization of the motor radial view to see the slot topology and dimensions.
3	DESIGN tab indicates the tools to define the slot topology and parameter values. Note: By default, DESIGN tab is selected.
4	SKEW tab indicates the tools to define the slot skewing angle.
5	"Slot shape" button allows accessing the slot libraries to change the slot topology. See additional information below.
6	User input parameter fields to enter the value.
7	Button to restore default input values.
8	Button to Apply inputs. Pressing the enter key twice applies inputs too.
9	Output parameters (read only data) to complete the description of the topology.
10	Icon to export slot data into .txt or .xlsx files.

SLOT design area

1

Selection of the STATOR subset: SLOT panel (Click on the icon SLOT)

2

Visualization of the motor radial view to see the slot topology and dimensions.

3

DESIGN tab indicates the tools to define the slot topology and parameter values.

Note: By default, DESIGN tab is selected.

4

SKEW tab indicates the tools to define the slot skewing angle.

5

"Slot shape" button allows accessing the slot libraries to change the slot topology.

See additional information below.

6

User input parameter fields to enter the value.

7

Button to restore default input values.

8

Button to Apply inputs. Pressing the enter key twice applies inputs too.

9

Output parameters (read only data) to complete the description of the topology.

10

Icon to export slot data into *.txt or *.xlsx files.

Slot - Overview
