Simulation Parameters

Specify the time steps in a time variant simulation.

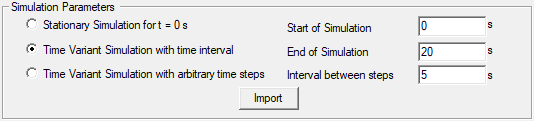

Figure 1. Specification of the time step in the simulation on the Edit Project Parameter dialog - Simulation tab.
