Viewing the Prediction Results

Display the power results using the dominant path model.

  1. View the power using the dominant path model in the urban environment.
    1. In the tree, expand Results: Propagation to view site 1.
    2. In the tree, expand Site 1 to view the three antennas.
    3. In the tree, expand Site 1 Antenna 3 to view the Field Strength and Power entries.
    4. In the tree, click Power to view the results.

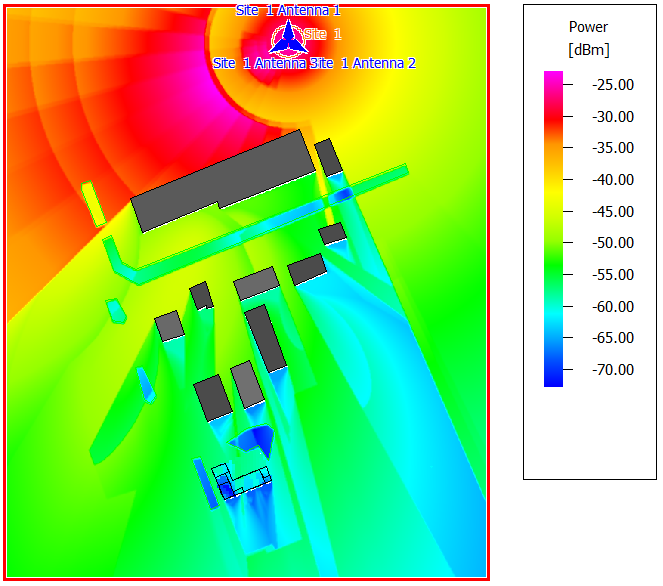

      Figure 1. Power calculated using the dominant path model (DPM).


  2. View the power for the indoor database.
    1. Zoom in on the indoor database.
    2. Right-click on the legend and from the right-click context menu, click Thresholds > Manual.
    3. In the Max field, enter a value of -50 dBm.
    4. In the Min field. enter a value of -90 dBm.

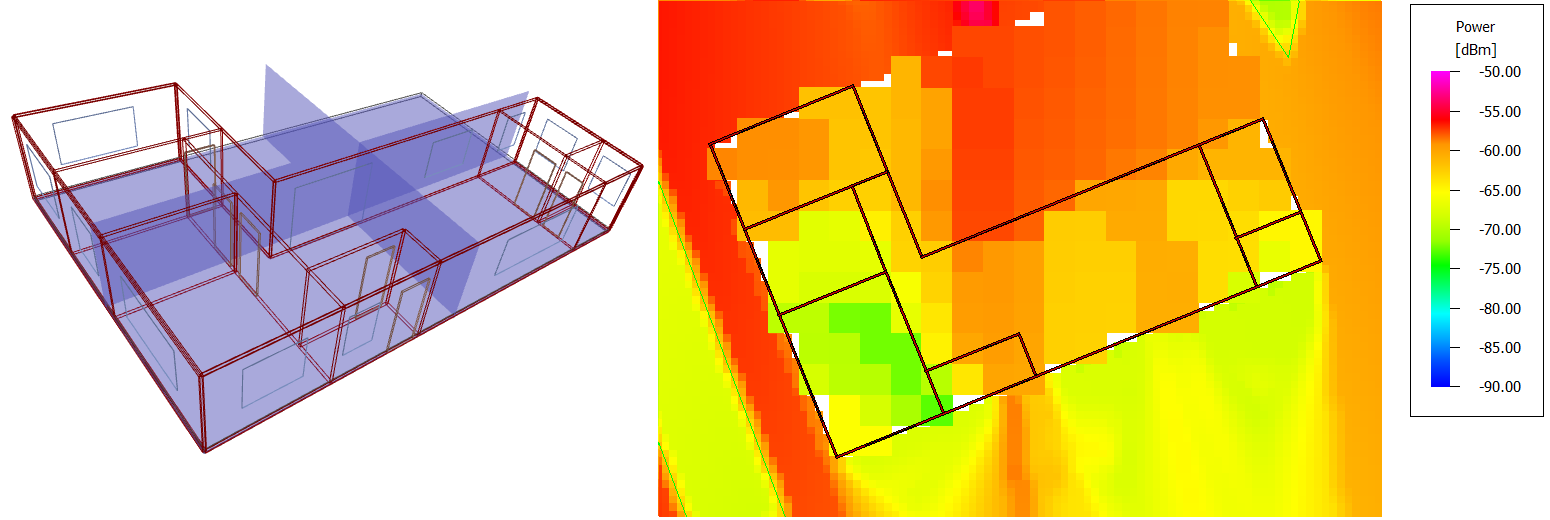

    Figure 2. Power calculated using the dominant path model (DPM) for the indoor database.
