Specifying the Computation Method

Select the dominant path model (DPM) as computation method.

Click the Computation tab.
Under Prediction model (Urban), click Dominant Path Model.
Under Indoor Prediction, select the CNP Indoor prediction (including indoor walls (only if available)) check box.

Note: This option applies to hybrid (urban/indoor) simulations.

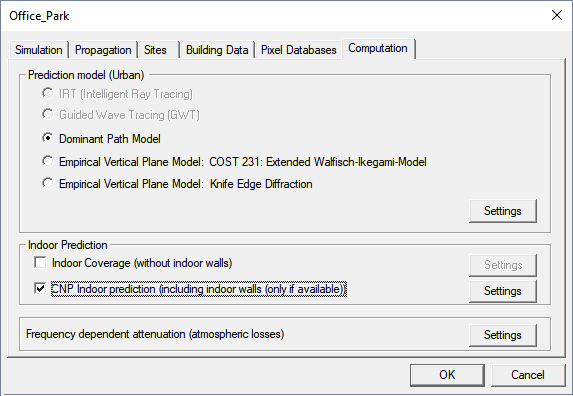

Figure 1. The Edit Project Parameters dialog - Computation tab.
Click OK to close the Edit Project Parameters dialog.
