Creating a New Project

Load the hybrid urban/indoor building database that was created in WallMan.

On the File menu, click New Project.
The New Project dialog is displayed.
Figure 1. The New Project dialog.
Under Scenario, from the drop-down list, select Urban Scenario (vector data for urban buildings and pixel topo data).
Under Databases, in the 3D building data (Vector database) field, browse to Office_Park.odb¹.
Under Polarimetric Analysis, select Standard (suitable for all scenarios and propagation models).
Click OK to close the New Project dialog.
Browse to the location of the file, UrbanArea.jpg² and click Open.
The Define Display Height dialog is displayed.
Figure 2. The Define display Height dialog.
In the Height field, use the default value of 1.5 m.

Note: This value is used only to specify the display height. This value has no impact on the height at which the prediction results are calculated.
Click OK to close the Define Display Height dialog.
The office park is displayed.

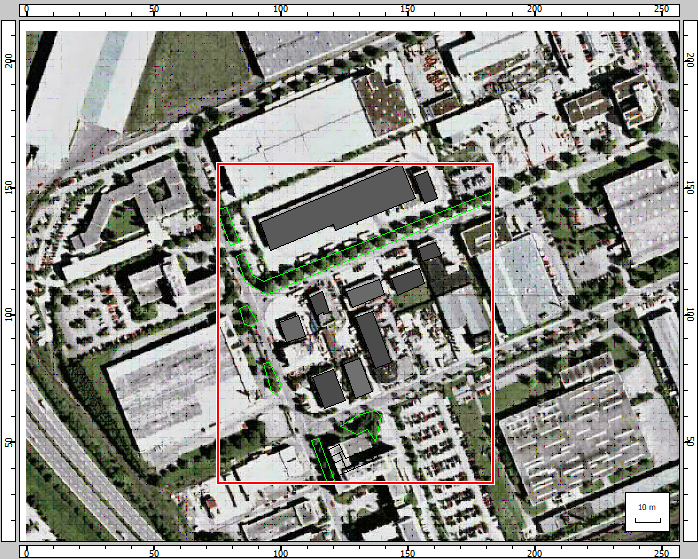

Figure 3. A top view of the office park.

Note: The red rectangle indicates the extent of the computational domain.

¹ Project2_Hybrid_Urban_Indoor_Scenario\Database\Office_Park.odb

² Project2_Hybrid_Urban_Indoor_Scenario\Database\UrbanArea.jpg
