HS-1810: Post Process with HyperStudy
Learn how to create various approaches (Design of Experiment, Approximation, Optimization, Stochastic) and explore a variety of tools and post processing methods offered by HyperStudy.
Run Fractional Factorial DOE
-
Add a DOE.
-
Define specifications.
-
Evaluate tasks.
- Go to the step.
- Click Evaluate Tasks.
- While the DOE is in progress, click the Tasks tab to view the feedback on the results of the evaluation.
- During the execution of the DOE, you can monitor the evaluation of the 16 runs in either the Evolution Plot or Evolution Data tabs.
-
Post process results.
Run Hammersley DOE
-
Add a DOE.
-
Define specifications.
- Go to the step.
- In the work area, set the Mode to Hammersley.
- In the Settings tab, change the Number of Runs to 50.
- Click Apply.
-
Evaluate tasks.
- Go to the step.
- Click Evaluate Tasks.
Run Latin HyperCube DOE
-
Add a DOE.
-
Define specifications.
- Go to the step.
- In the work area, set the Mode to Latin HyperCube.
- In the Settings tab, change the Number of Runs to 15.
- Click Apply.
-
Evaluate tasks.
- Go to the step.
- Click Evaluate Tasks.
Run Radial Basic Function Fit
-
Add a Fit.
- In the Explorer, right-click and select Add from the context menu.
- In the Add dialog, select Fit Existing Data and Setup, and click OK.
-
Import matrices.
- Go to the step.
- Click Add Matrix twice.
- Define the matrices by selecting the options indicated in Figure 8.
- Click Apply.
Figure 8.
-
Define specifications.
- In the work area, Fit Type column, select Radial Basis Function (RBF) for all output responses.
- Click Apply.
Figure 9.
-
Evaluate Fit.
-
Post process results.
Run ARSM Optimization
-
Add an Optimization.
- In the Explorer, right-click and select Add from the context menu.
- In the Add dialog, select Optimization.
- For Definition from, select Setup and click OK.
- Go to the step.
- Click the Objectives/Constraints - Goals tab.
-
Add an objective.
- Click Add Goal.
- In the Apply On column, select Area ACE (r_10).
- In the Type column, select Minimize.
Figure 15.
-
Add constraints.
- Click Add Goal nine times to add nines goals, which will be defined as constraints.
- Define Constraint 1 through Constraint 9 by selecting the options indicated in Figure 16.
Figure 16.
-
Define specifications.
-
Evaluate tasks.

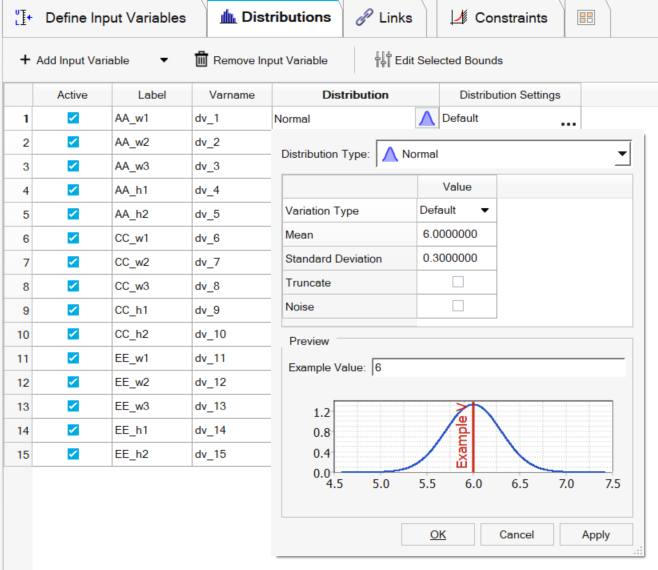

Run Hammersley Stochastic
-
Add a Stochastic.
-
Define specifications.
- Go to the step.
- In the work area, click Show more ... set the Mode to Hammersley.
- In the Settings tab, change the Number of Runs to 100.
- Click Apply.
-
Evaluate tasks.
- Go to the step.
- Click Evaluate Tasks.
- Go to the step.
- Click the Integrity tab to access a series of statistical measures on input variables and output responses.
-
Click the Distribution tab to view variable and output
response data in a histogram.
Figure 20.
-
Click the Scatter tab to view sampling patterns and
possible correlations between output responses or between input variables and
output responses.
Figure 21.
-
Compute the probability of failure (bound is violated) and the reliability
(bound is respected).
