S-Parameter Coupling in a Stepped Waveguide Section

Calculate the transmission and reflection for a stepped waveguide transition from the Ku- to X-band. Use two solver methods, the method of moments (utilising waveguide ports) and the finite element method (utilising FEM modal ports).

The waveguide consists of a Ku-band section and an X-band section. Only the H₁₀ mode with cutoff frequency, $f_{c} = \frac{c_{0}}{2 a} = 9.4871$ GHz is considered.

The Ku-band section dimensions are as follows:

a = 15.8 mm
b = 7.9 mm

The X-band section dimensions are as follows:

a = 22.9 mm
b = 10.2 mm

Calculate S-parameters from the cutoff frequency to 15 GHz.

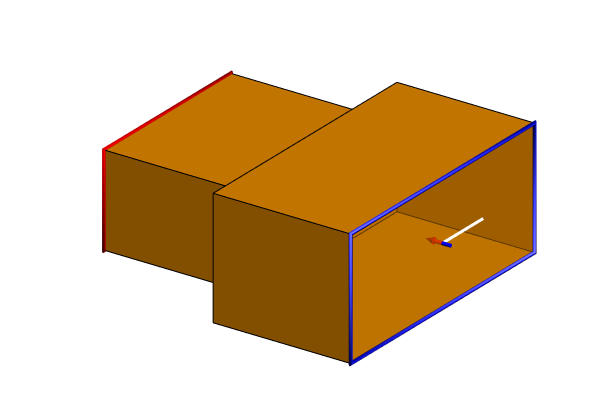

Figure 1. 3D view of the waveguide step.

Tip: Find the completed models in the application macro library¹.

¹ The application macro library is located on the Home tab, in the Scripting group. Click the Application Macro icon and from the drop-down list, select Example Guide.
