Mission Comparison

The Mission Comparison page allows you to compare two simulations.

To compare simulations:

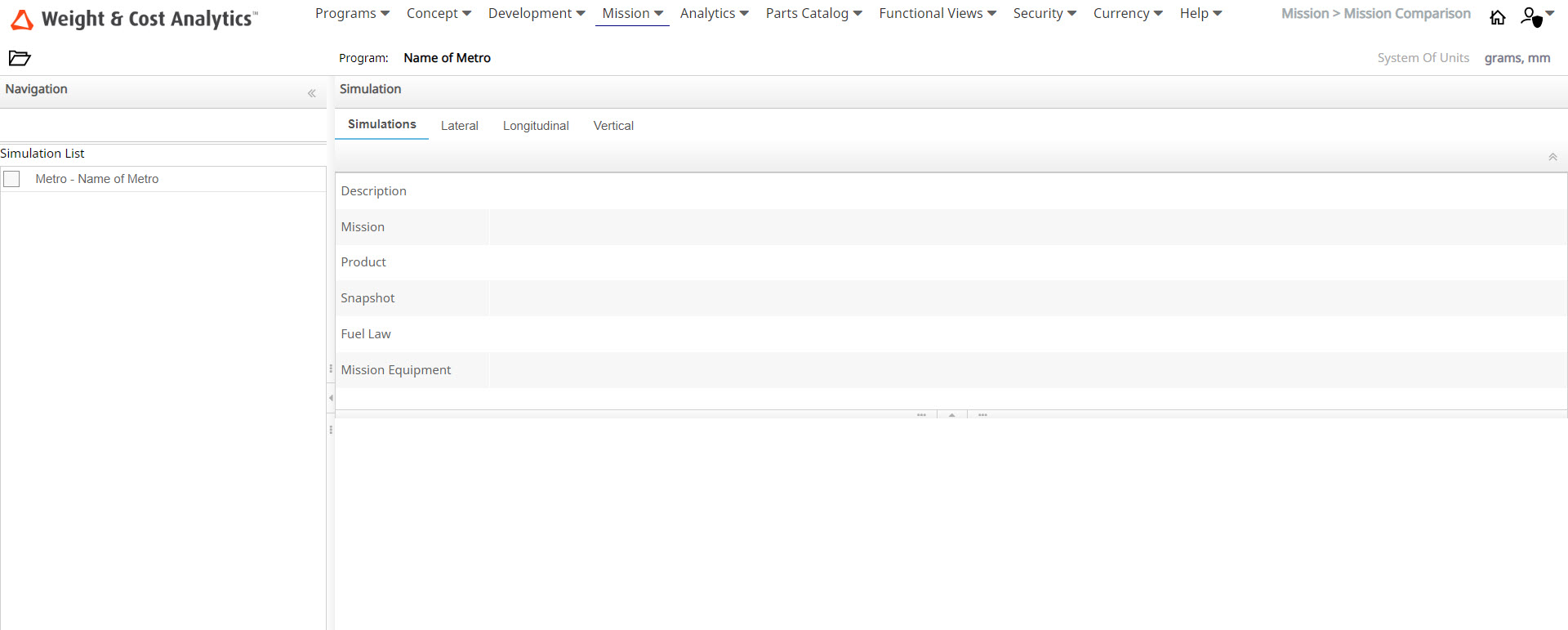

The Navigation panel displays all the Mission simulations that are created in the system. When no simulations are made, the Mission Comparison page is empty as shown in the following image.

The Mission Comparison page is populated with all the available simulations in the navigation panel, as shown in the following image.

1. Click Mission > Mission Comparison.





   The Mission Comparison page displays all the simulations in the system.
2. Click the Reload Tree icon in the Navigation panel.
   The simulations available in the system are reloaded.

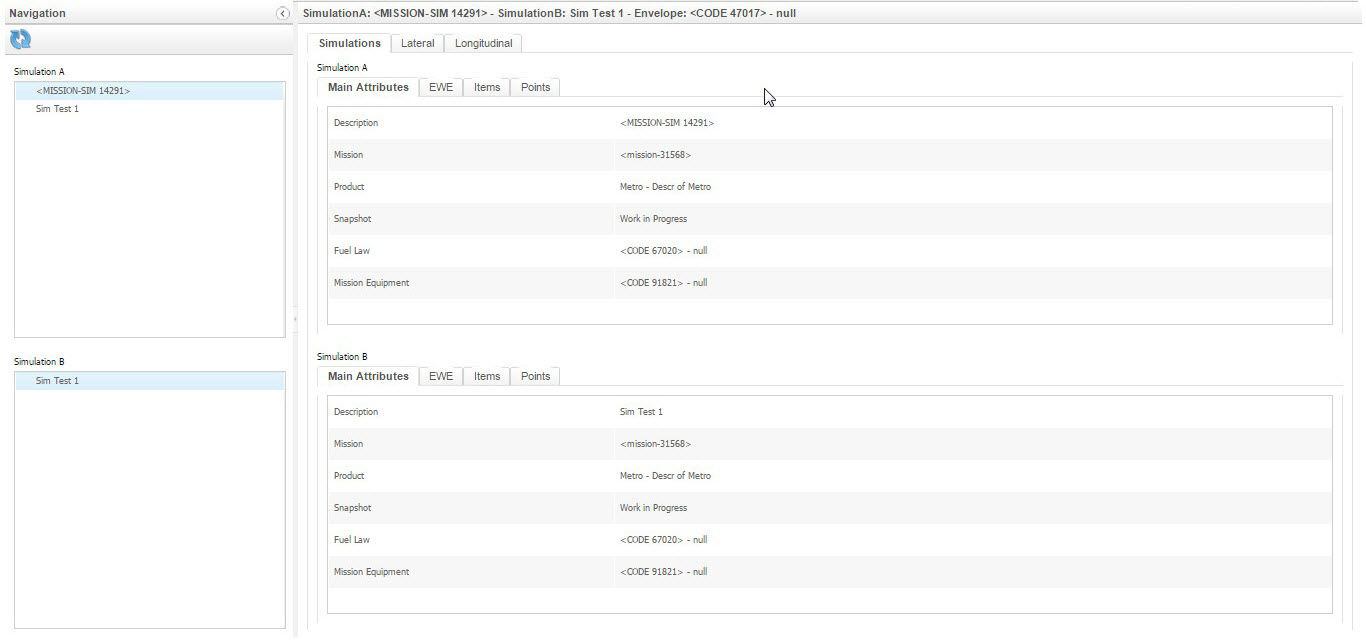

3. Select the first simulation in the Navigation panel.
   The system with the simulation data (inside the related Main Attributes tab) and with all Items and Points defined inside the simulation in the related tabs is populated in the Simulation A area. Accordingly the Simulation B is populated with all the available simulation comparable with the selected one in the Simulation A table.

   Note: Two simulations are comparable only if they are defined on the same Envelope.

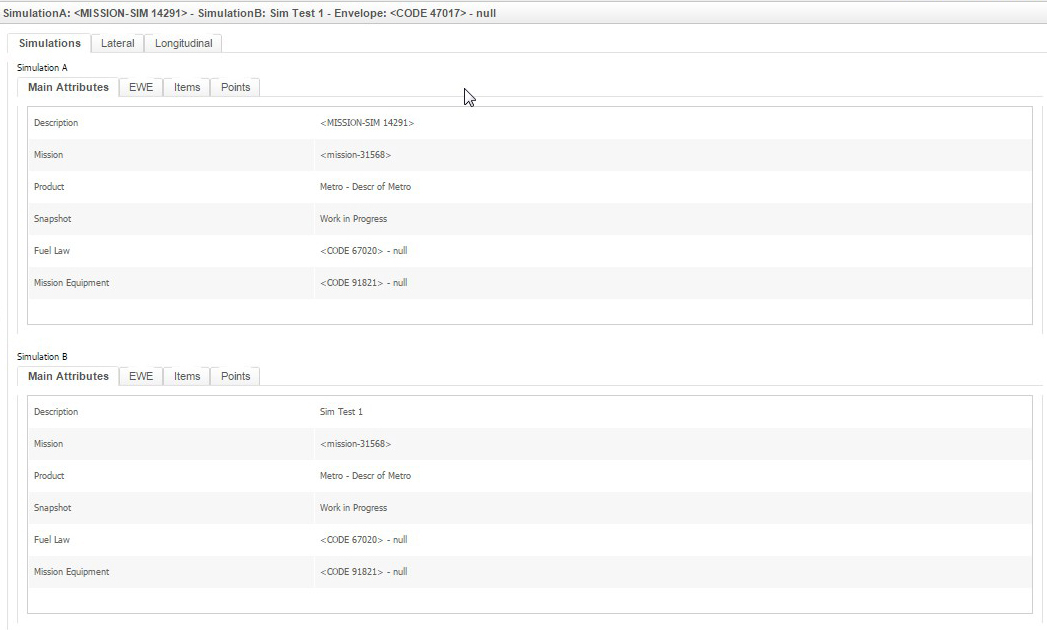

4. Select the Main Attributes tab.
   The Simulations tab displays the information related to both the selected simulations.

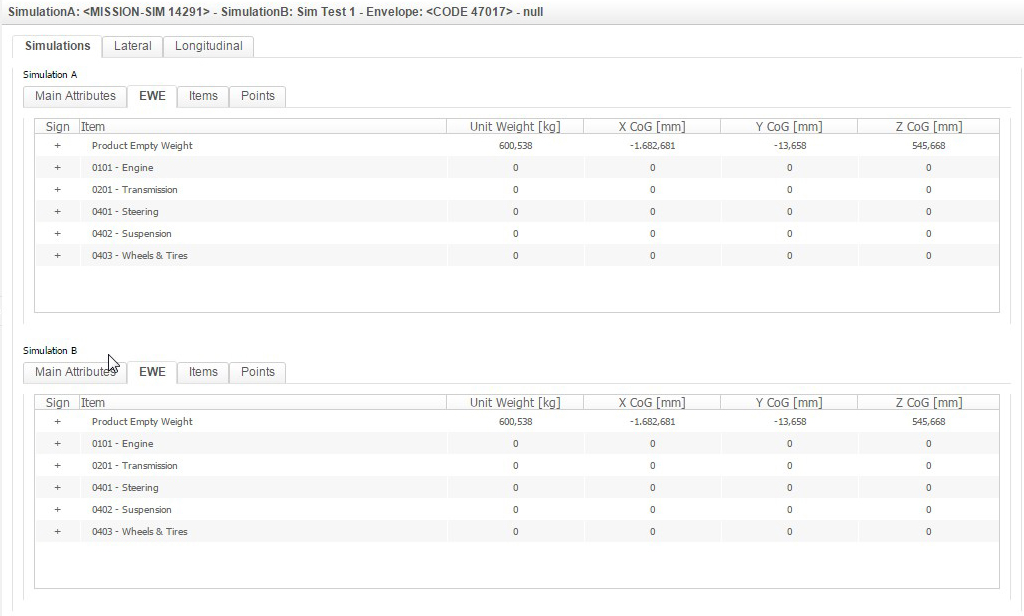

5. Select the Empty Weight Equipped (EWE) tab.
   Comparison data related to both the selected simulations is displayed.

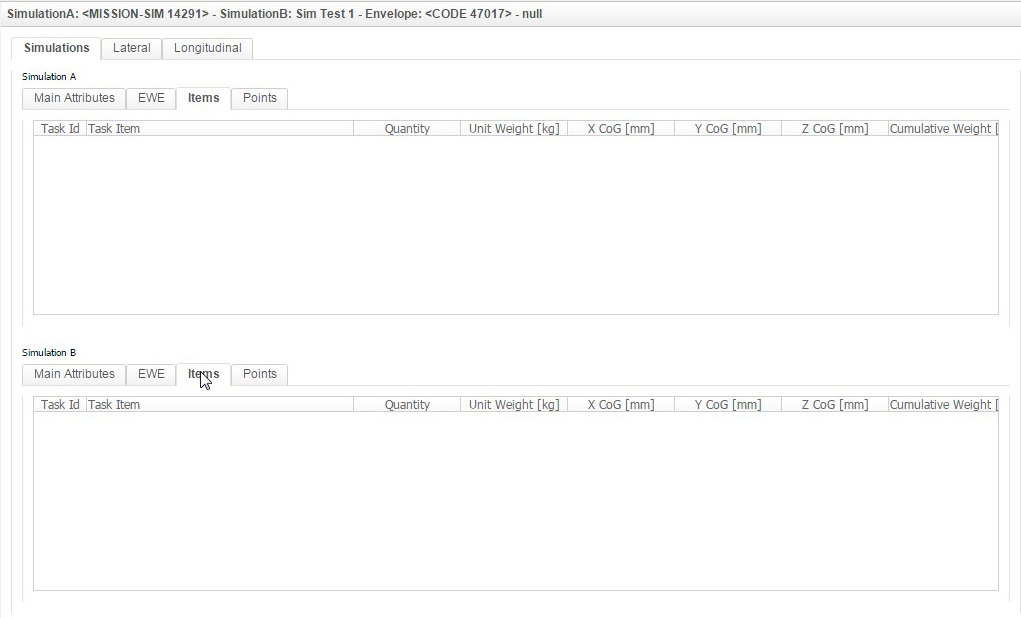

6. Select the Items tab.
   Comparison data related to both the selected simulations is displayed.

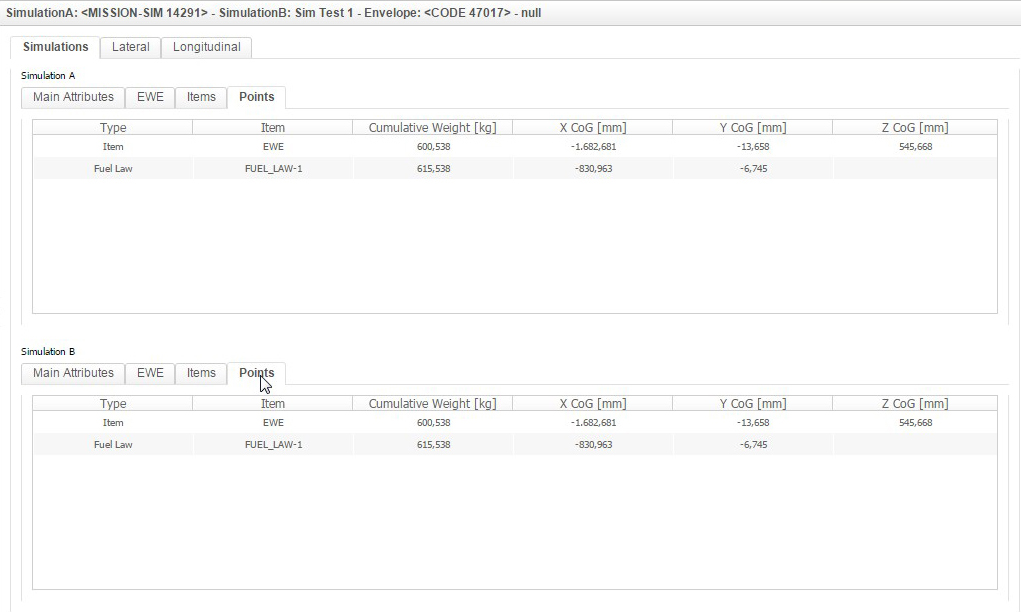

7. Select the Points tab.
   Comparison data related to both the selected simulations is displayed.
