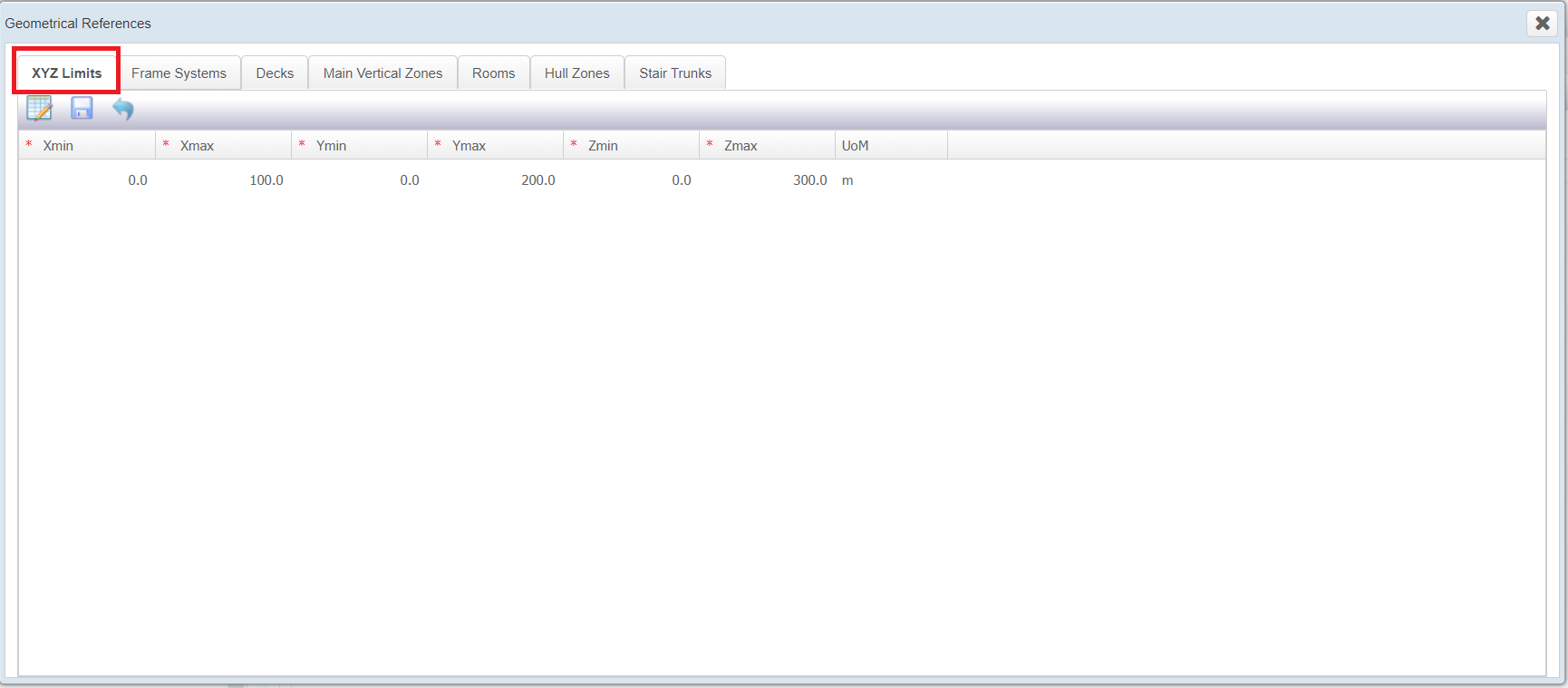

XYZ Limit

The tasks that can be carried out in the XYZ limit options are:

  • Enable changes
  • Save changes
  • Undo changes
  • Define Xmin, Xmax, Ymin, Ymax, Zmin,Zmax values
  • UOM is not editable and it is picking the system of Unit automatically
Note:
  • Any tab is in edit mode enable then user cannot edit any other tab in geometrical reference.
  • Any tab is in edit mode enable then user can not close geometrical reference dialog box.
