Incongruents

Incongruent option appears when user click on “recalc icon” in BOM Management and Program Management.

Note:
  • when you change something, in Geometrical Reference, that is already in use somewhere in the BOM (like as MVZ, Deck , Frame) that's generates the incongruent
  • The user can remove the incongruence changing, one by one, the primary list of incongruent or selecting some entry in the same list and use the multiple change panel above

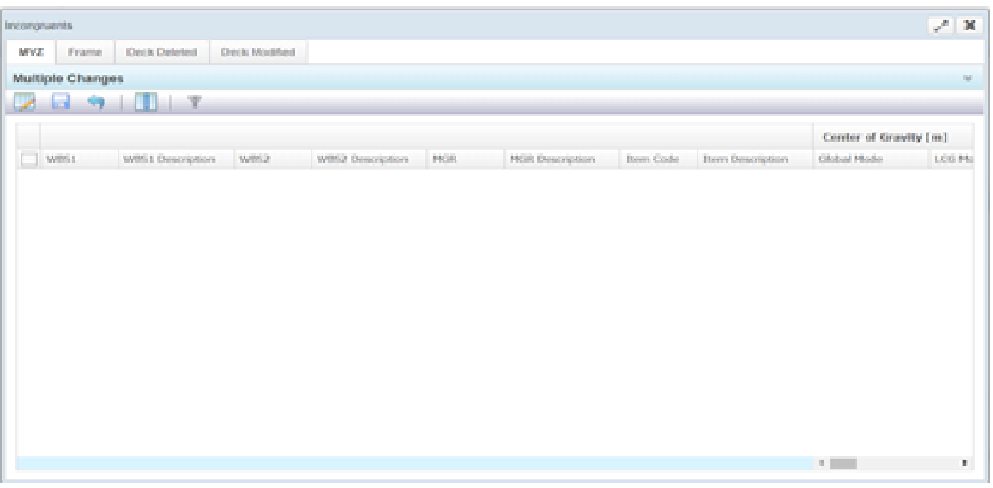

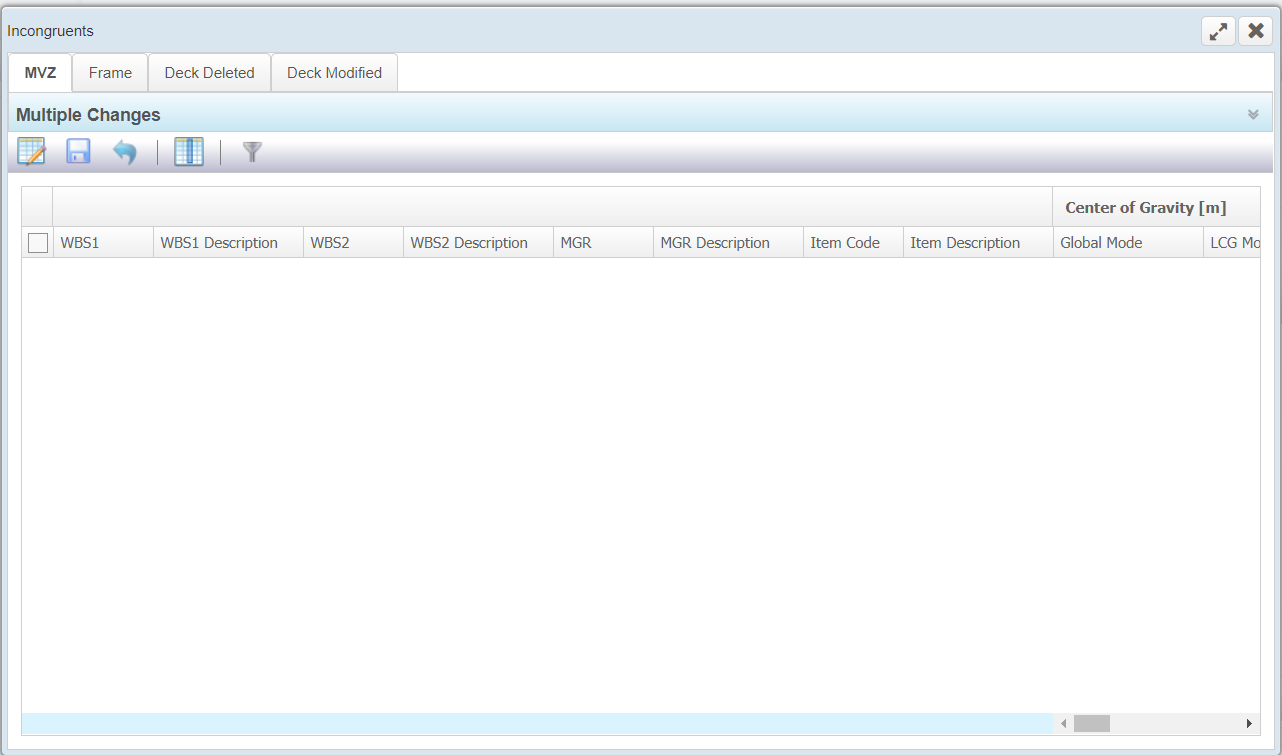

Incongruent window has Four tabs - MVZ, Frame, Deck Deleted, Deck Modified

For each tab user can perform the tasks that can be carried out in the Incongruent window options are:

  • Enable changes
  • Save changes
  • Undo changes
  • Customize Grid column
  • Show/Reset column filter
  • Multiple changes Click on the down arrow button

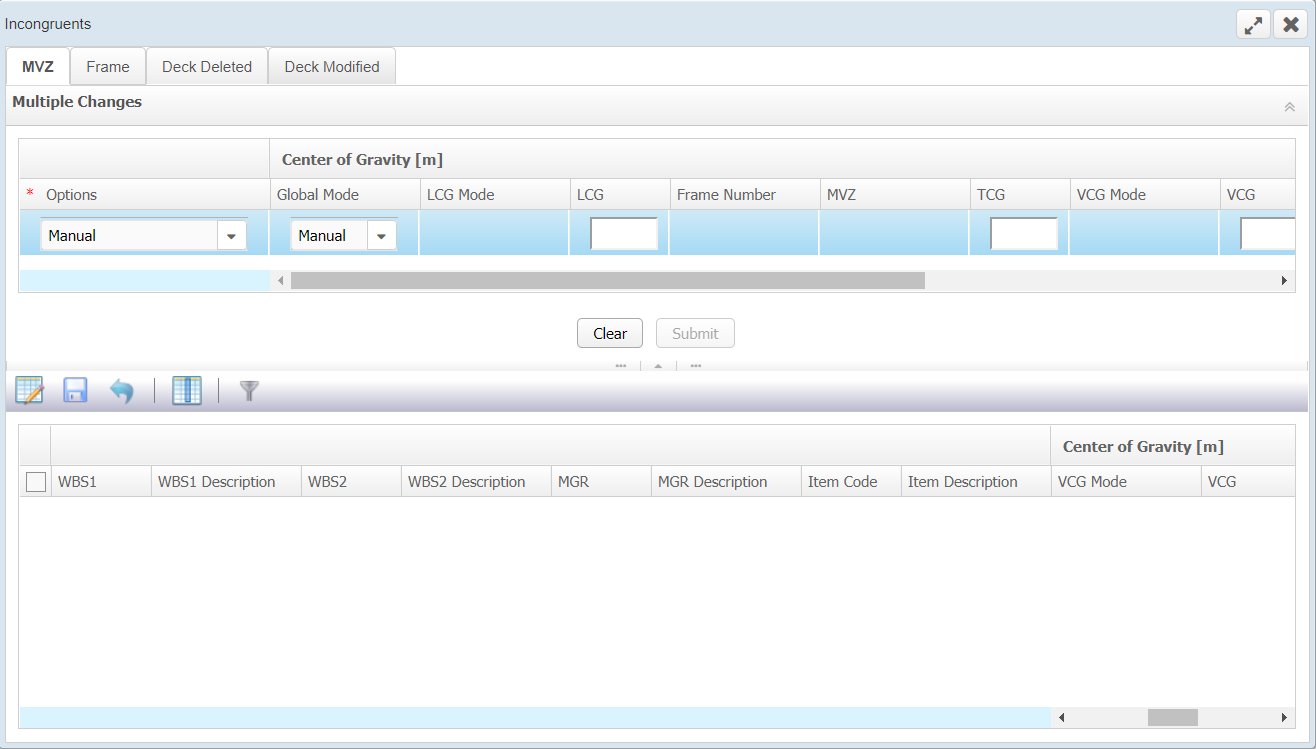

  • Multiple changes window appears

  • Select Options, Global Mode, COG in Multiple changes window.
  • Click on submit button.
  • It will apply changes in the grid for selected row
  • Same data apply to the BOM management.
Note:

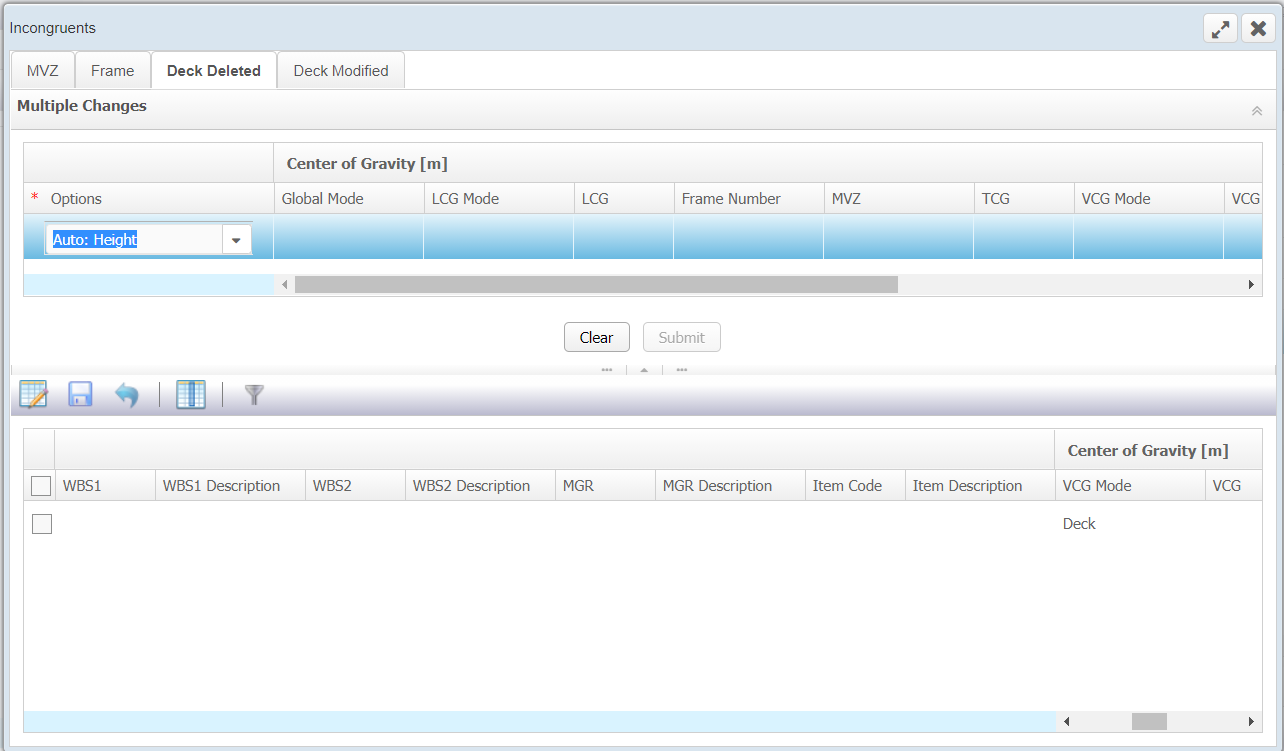

  • In case of Deck they can be modified or deleted even if they are already used in the BOM
  • In case of MVZ and Frame we can only update them, but ​we cannot delete MVZ and Frame if they are used by BOM items.
  • User can remove the MVZ or Frame if and only if the item is not in use in any BOM
