Information

General data information

General Data information allows giving some reference data for catalogs. They are described below.

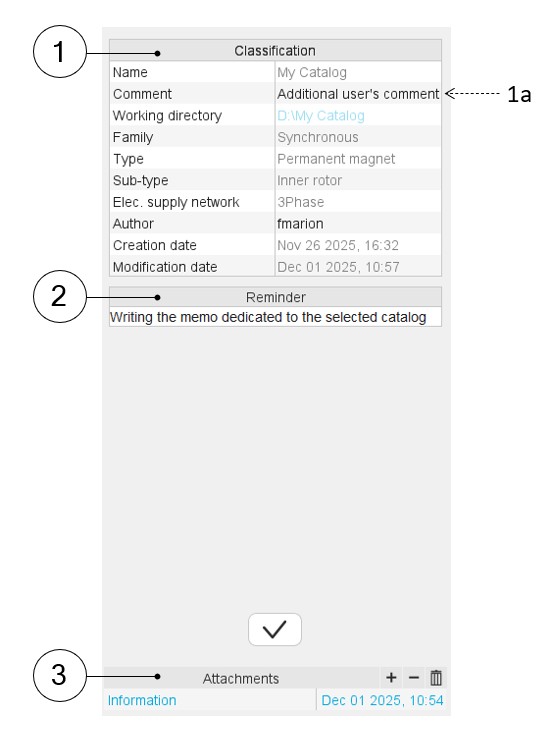

Table 1. Catalog information


1 General information:
  • Name of the catalog
  • One can add comments (1a) dealing with the selected catalog in the general information. Only available for User’s catalogs.
  • Working directory in which all the data dealing with the catalog is stored.
    Note: Clicking on this link allows directly reaching the corresponding folder.
  • The elements used to classify the motors stored in the catalog are displayed: Family, Type, Sub-type, electrical supply network.
  • Author: Modifiable only for User’s catalogs
  • Creation and Modification dates
2 Area in which it is possible to write a memo. Only available for User’s catalogs.
3 Area for attaching documents. Only available for User’s catalogs. Refer to the description in the section below.
