Specifying the Computation Method

Select the dominant path model (DPM) as computation method.

Click the Computation tab.
Under Prediction model, click Dominant Path Model (DPM).

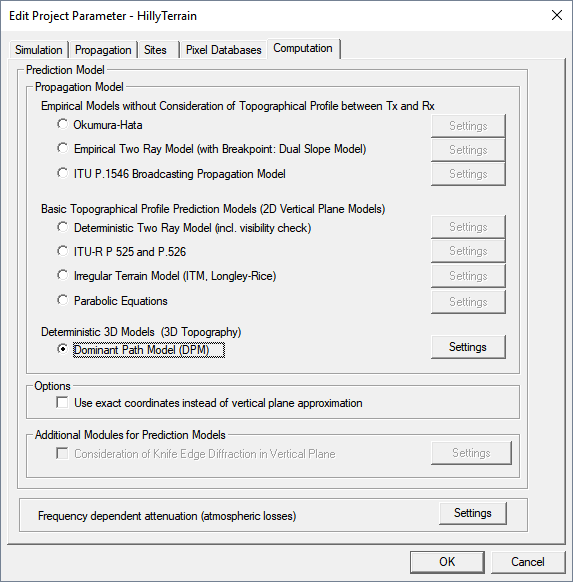

Figure 1. The Edit Project Parameters dialog - Computation tab.
Click OK to close the Edit Project Parameter dialog.
