Viewing the Prediction Results

Display the power results using the dominant path model.

View the power in the 3D view using the dominant path model in the urban environment.
1. On the Edit toolbar, click the 3D View icon.
2. In the tree, expand Results: Propagation to view the sites.
3. In the tree, expand Site 2 to view the three antennas.
4. In the tree, expand Site 2 Antenna 3 to view the Power.

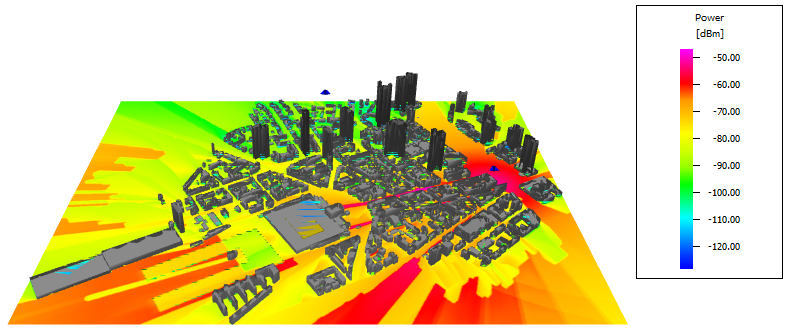

Figure 1. View the power (dBm) in the 3D view.
1. Click the 3D View icon again to return to the 2D view.
View the power using the dominant path model in the urban environment.
1. In the tree, expand Results: Propagation to view Site 2.
2. In the tree, expand Site 2 to view the three antennas.
3. In the tree, expand Site 2 Antenna 3 to view the Field Strength and Power entries.
4. In the tree, click Power to view the results.

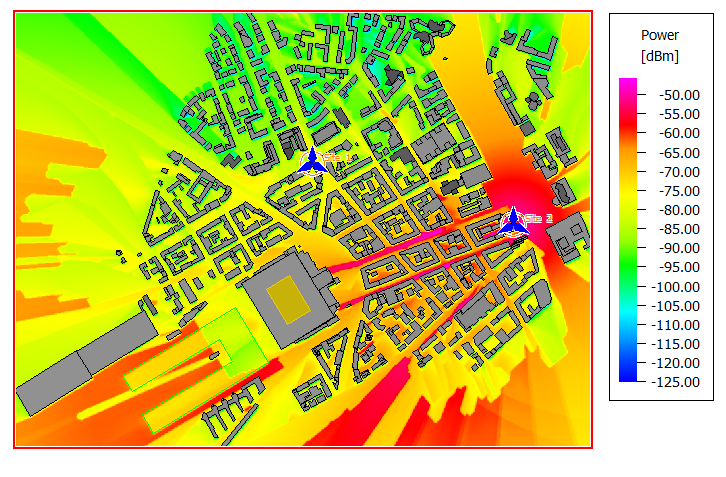

  Figure 2. Power calculated for Site 2 Antenna 3 using the dominant path model (DPM).
View the power inside the buildings.
1. On the Settings menu, click Local Settings (Display of Data).
2. Click the Layout tab and next to the Urban database (vector data), click Options.
3. On the Display of buildings dialog, under Drawing of buildings, clear the Fill Buildings check box.
4. Click OK to close the Display of Buildings dialog.
5. Click OK to close the Display Settings dialog.

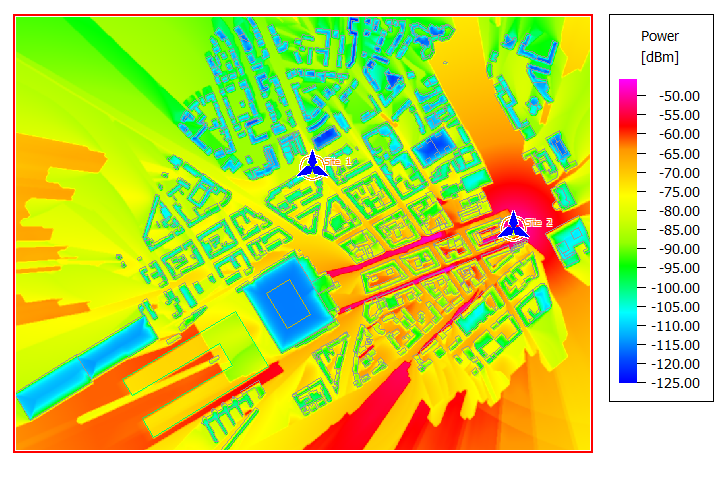

  Figure 3. Power calculated for Site 2 Antenna 3 using the dominant path model (DPM). The Fill Buildings display setting is disabled.
