Specifying the Computation Method

Select the dominant path model (DPM) as computation method.

Click the Computation tab.
Under Prediction model (Urban), click Dominant Path Model.
Under Indoor Prediction, select the Indoor Coverage (without indoor walls) check box.

Note: The option computes an estimation of the indoor coverage.

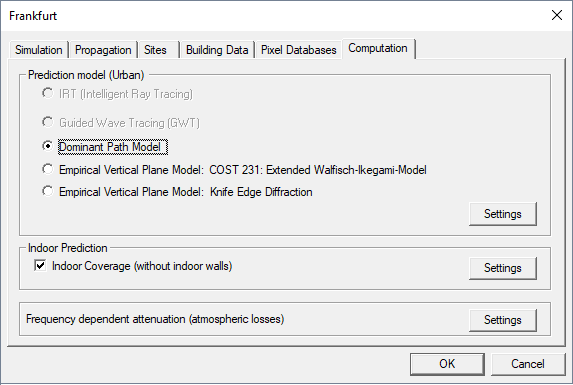

Figure 1. The Edit Project Parameters dialog - Computation tab.
Click OK to close the Edit Project Parameter dialog.
