Display Settings

Change the display settings of objects to validate the model visually.

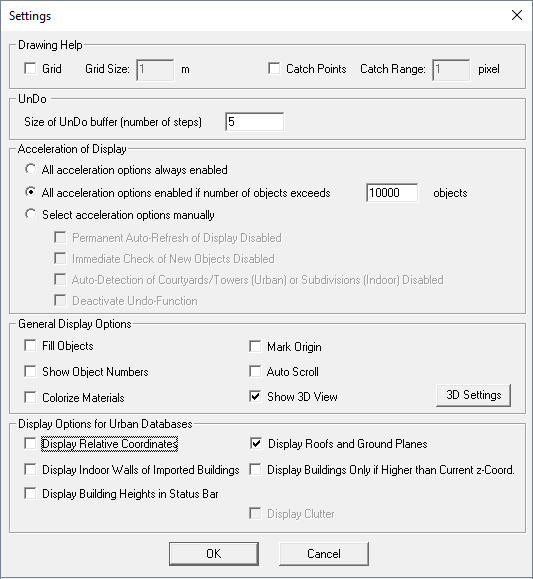

On the Settings menu, click Local settings to launch the Settings dialog.

Fill Objects: This option allows you to visualize the model as a 3D solid and reduce visual complexity.

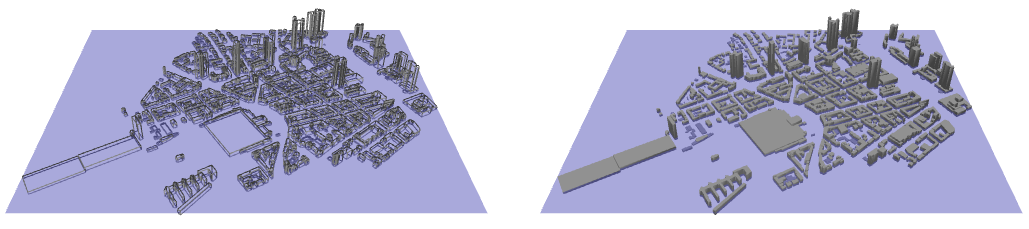

Figure 2. A model without fill (on the left) and a model with fill (to the right).
Display Building Heights in Status Bar: This option allows you to validate the model by viewing the height of an object. In the X/Y view hover with the mouse over a building to view the height of the building in the Status bar.
