Drawing Buildings

Trace building outlines on the imported aerial photograph to draw buildings.

  1. Trace the building in the X/Y window using one of the following workflows:
    • On the Objects menu, click Enter Basic Objects > Enter Polygonal Object.
    • On the Objects toolbar, click the Add Polygonal Objects icon.
    • Press F7 to use the keyboard shortcut.
  2. Click twice to specify the start point of the building.
  3. Trace the building by clicking on the corners of the building.
    Tip: Press Esc to exit the creation of the current polygon.
  4. Right-click at the start point to close the polygon.
  5. Repeat Step 2 to Step 4 and trace multiple buildings.

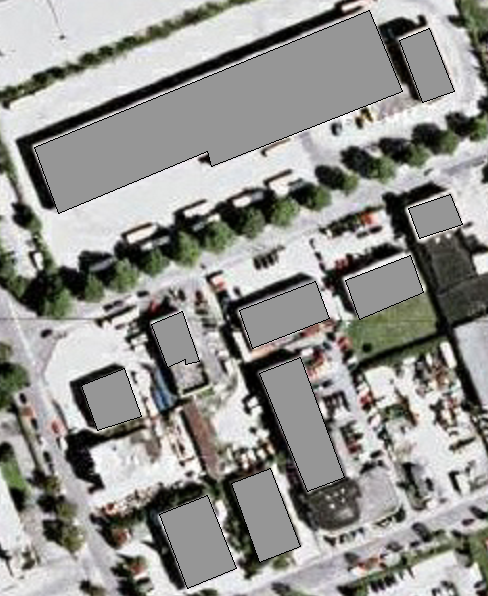

    Figure 1. Drawn buildings are indicated in grey.


  6. Exit the draw mode using one of the following workflows:
    • On the Objects menu, click Select Objects > Select Single Object (Mouse).
    • On the Objects toolbar, click the Select Object icon.
    • Press F10 to use the keyboard shortcut.
  7. Select the building by clicking on the outline of the building.
    A selected object is indicated in red.

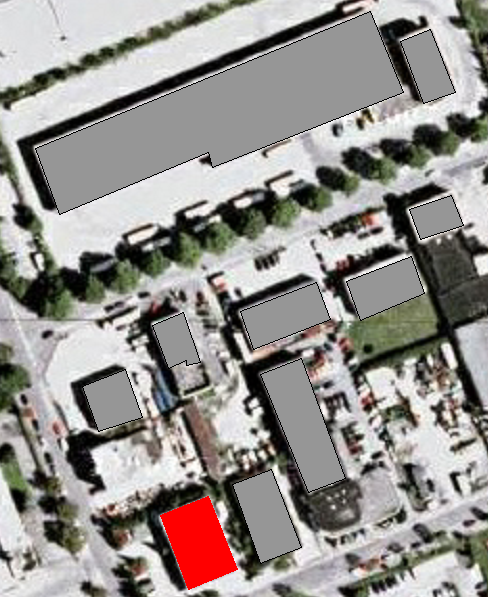

    Figure 2. A selected building is indicated in red.


  8. Right-click on the selected building and from the right-click context menu, click Properties.
    The Object Properties dialog is displayed.

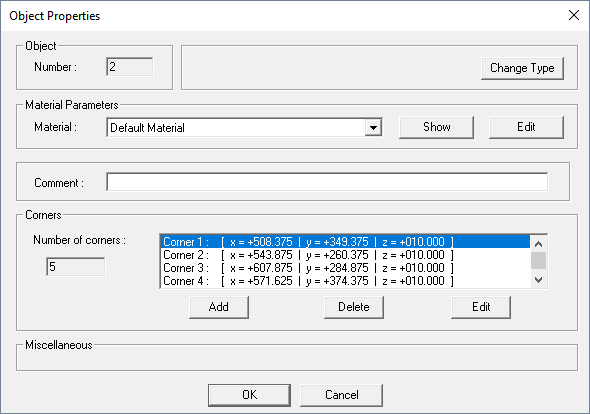

    Figure 3. The Object Properties dialog.


  9. Under Corners, select a corner and click Edit to modify the height of the buildings.
    Note: You can modify the height of any corner to change the height of the building.

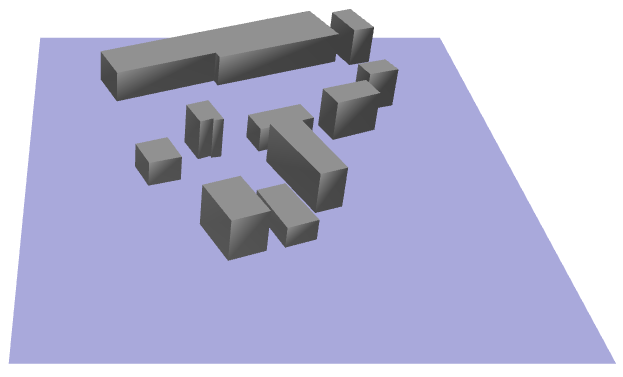

    Figure 4. The 3D view of the buildings after their heights were modified. The aerial photograph was hidden for demonstrative purposes.


  10. Click OK to close the Enter Coordinates dialog.
  11. Save the outdoor database.
    1. On the File menu, click Save Database As.
    2. Enter Office_Park_partial.odb as the file name for the outdoor database and click Save.
      Note: The .odb file extension stands for outdoor database binary.
