RD-V: 0230 Fabric Tensile and Compression

Simple fabric material behavior analysis under in plane tensile and compression loading.

The subject of this study is to analyze the behavior of the simple fabric material /MAT/LAW19 under in plane deformation.

Options and Keywords Used

Input Files

Before you begin, copy the file(s) used in this problem to your working directory.

Model Description

Units: kg, ms, mm, GPa

Rectangular coupon is meshed with 4 noded and 3 noded shell elements.

One end of the coupon is clamped using a rigid body and a boundary condition.

The other end is set in a rigid body with an imposed displacement to model tensile and compression. The other degrees of freedom are fixed using a boundary condition.

The material properties are:
Property
Value
Density
8E-7 kg/mm3
Elastic modulus direction 1 (E11)
0.3 GPa
Elastic modulus direction 2 (E22)
0.5 GPa
Shear modulus (E12)
0.05 GPa
Compression stiffness reduction factor
0.1
Poisson’s ratio
0 (for an easier computation of the theoretical value)
This material is applied on different parts with the following orientation:
  • Material direction 1 in the tensile direction
  • Material direction 1 normal to the tensile direction
  • Material direction 1 is oriented by 45 degrees to the tensile direction


Figure 1. Model description

Results

The stress versus strain output from the time history with stiffness defined in the material both in tensile and compression.


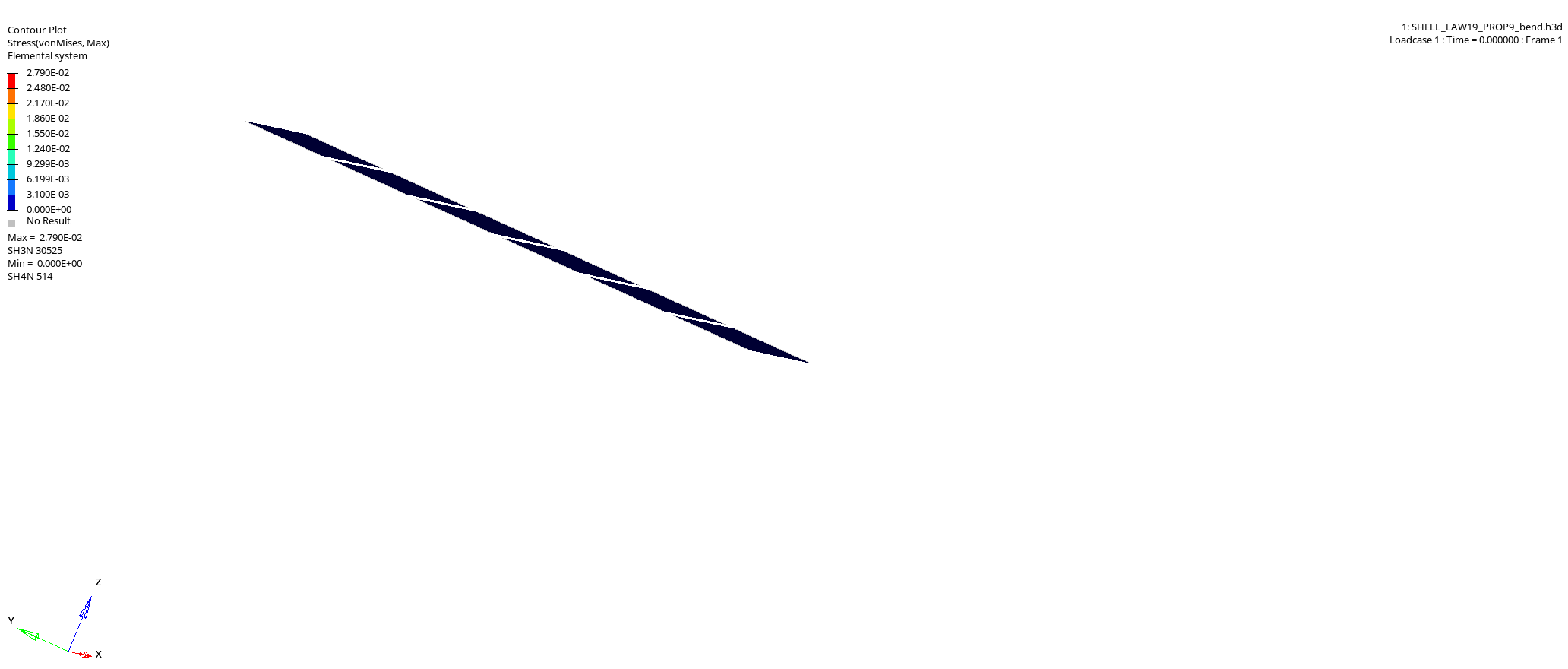

Figure 2. Tensile and compression results
The reaction force measured at the anchorage point (through rigid body) is equal to the strain * Elastic modulus * coupon section (area) and is very close to the theoretical value.
Tensile 0 degrees = 3kN
elongation (20) / initial length (320) * E11 (0.3) * width (160) * thickness (1)
Tensile 90 degrees = 5kN
elongation (20) / initial length (320) * E22 (0.5) * width (160) * thickness (1)
Compression 0 degrees = 0.3kN
RE (0.1) elongation (-20) / initial length (320) * E11 (0.3) * width (160) * thickness (1))
Compression 90 degrees = 0.5kN
RE (0.1) elongation (-20) / initial length (320) * E22 (0.5) * width (160) * thickness (1))

Results with Reference State

During the fabric seaming and/or folding process (airbag, seatbelt, seat cushion, and so on), the initial shape of the fabric component is usually smaller (or bigger) than the reference one, (the one before assembling). This reference shape can be stored in the reference state as /XREF (node based) or /EREF (element based).

From the previous model, the initial size of the sample is reduced by around 10% and the reference shape is stored in an /XREF card.

The imposed displacement is shifted by the distance to recover the reference state (+32mm).

Rayleigh damping is added on all nodes to reduce the effect of the elastic vibration with:
  • Around 0.1% of mass damping: alpha = 0.001 / time step = 0.851
  • Around 1% of stiffness damping: beta = 0.01 * time step

In the results, there is no force (only small force from mass effect, inertia and stability numerical damping) until the displacement reaches 32mm because of the flag ZEROSTRESS=1 in the fabric material.

When the reference state is recovered, the material behavior is exactly the same as the model without a reference state.


Figure 3. Tensile and compression results with initial reference state

The initial compression strain (10%) can be seen in the stress strain curve.

There are elastic vibrations when the reference state is recovered because the material is bilinear without smooth transition between tensile and compression.

Conclusion

These models show the expected behavior for the tensile, compression and shear behavior. The reference state is correctly handled and the stresses are correctly canceled during the transition between initial shape and reference one.
