Animate and Record Results

Use the Animation Toolbar that appears at the bottom of the modeling window to animate and record results.

Animate Results

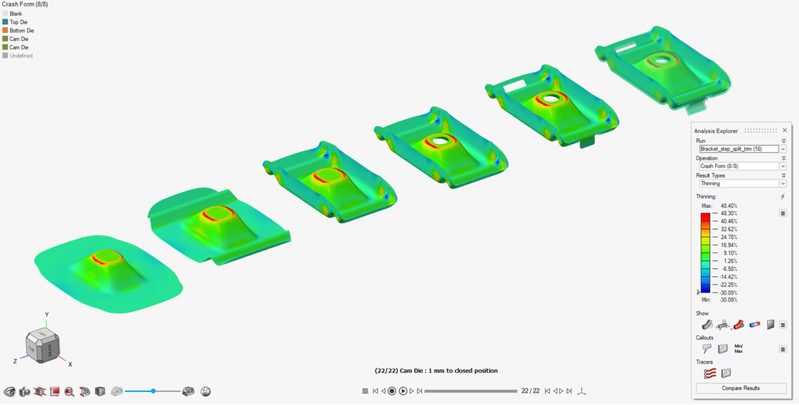

Animate the results of a forming simulation.

After running an analysis, click the Show Analysis Results icon. The Analysis Explorer appears to the right of the model and the animation toolbar appears at the bottom of the modeling window.
  1. To review the analysis, on the animation toolbar, click the play button.


  2. To pause the animation, click the pause button.
  3. To move to the next step in the animation, click the next button.
  4. Optional: To change the animation settings, click the settings button.


  5. Configure the animation settings as required:


    • Playback: Select whether to play the animation on a continuous Loop, Once, or Bounce (between forwards and backwards). Select the check box to Reverse Playback.
    • Display: Set the units for the slider Step Label, Time, or Frame. Step Label is the default and describes information about the current step, including distance to closed position.
    • Increment By: Increase the value in the counter to skip frames during playback. The reset button restores the default value of 1.
    • Range: Select to enter Start and End frames for the animation.
    • Speed: Drag the slider to change the speed of the animation. Drag to the right to increase speed and left to decrease it.
    • Animation: Choose between animating a single operation or animating all operations in sequence.
    • Scale Factor: Enter a custom value to change the scale of the animation. Generally the scale of a displacement is too small to see clearly, so auto scaling is enabled by default.
    • Recording Settings: The default Auto setting gives you an estimate of the duration of the recording at 30 frames per second. If your video plays back faster than you want, select Custom Duration to change the length of the video; this will adjust the frame rate to try to achieve the specified duration. The Custom Duration has a minimum value of 1 second, and maximum value of 30 seconds.
  6. Right-click to exit the tool.
Tip:
  • To view a particular point during the analysis, drag the slider on the animation toolbar, or click a bookmark. To set a bookmark to quickly revisit a frame, right-click on the slider to view the list of All Frames, then double-click the frame to mark. Double-click the frame again to remove the bookmark.
  • The arrows to the right of the slider can be used to jump to any stage or step in the operation.

Record Results

Capture the results of a forming simulation in .mp4 video format.

Run an analysis. When complete, a check icon appears in the Run Status window. Double-click the run. The Analysis Explorer appears to the right of the model and the animation toolbar appears at the bottom of the modeling window.
  1. If you haven't already done so, play back your results to get an idea of what you're about to record.
  2. Optional: To change the animation settings, on the animation toolbar, click .
  3. Optional: To begin recording the results, click the record button .
  4. The icon changes to red to indicate that the software is recording. Click the icon again to stop recording.


  5. When the recording is finished, the video is automatically saved in the directory C:\Users\<yourname>\Documents\Altair\videos with a file name constructed from the time stamp such as recording2018.8.8_15.47.39.mp4.
  6. Right-click to exit review mode.
Tip:
  • The default behavior is continuous recording, but the recording stops automatically if the playback option is set to Once rather than Loop.
  • To avoid capturing the workflow help in the recording, select File > Preferences, and in the Workspace category, clear the check box Show workflow help.
  • To avoid recording the mouse cursor, on the animation toolbar, click the step button and press the Tab key to move the focus to the record button . Then press the Spacebar to start or stop the recording.
  • Note that the video recorder captures everything in the region of the modeling window. Avoid obscuring or minimizing that window during the recording process.

Animation Shortcuts

To Do this
Play and pause If the Play button is active, press the Spacebar.
Go to the first/last frame Press the Home or End key.
Go to the next/previous frame Press the Page Up or Page Down key.
Increment the slider

Use the arrow keys to move frame-by-frame through the animation, or position the cursor over the slider and use the scroll wheel.

Exit tool Right-click and mouse through the check mark to exit, or double-right-click.
