Design

Type of shaft

The design of the machine can be considered with or without a shaft. Hence, two solutions are proposed:

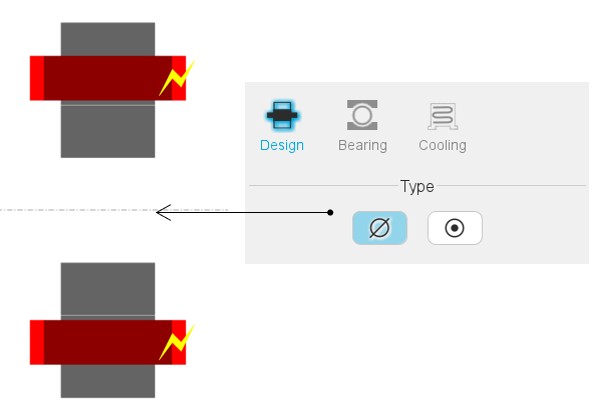

None: The shaft is not represented and not considered in the rotor design. It is replaced by fluid (like air).

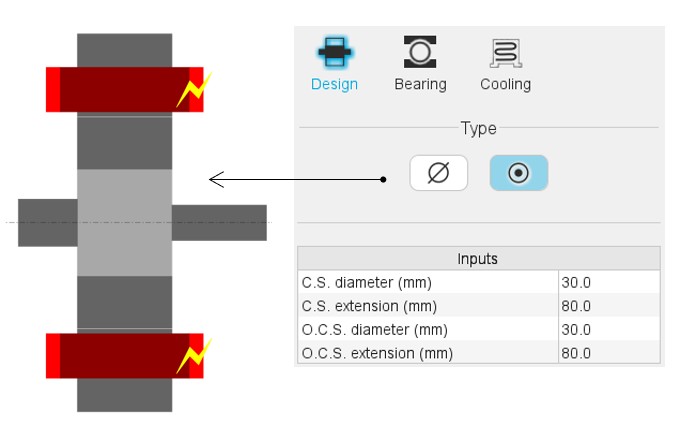

With shaft: The shaft is represented and considered in the rotor design.

Note: The shaft can be built only with solid material.

Table 1. Type of shaft

Shaft type: None	Shaft type: Solid

Table 2. Type of shaft

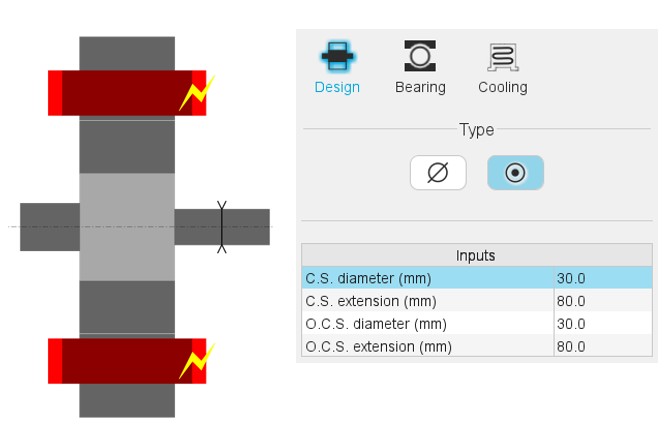

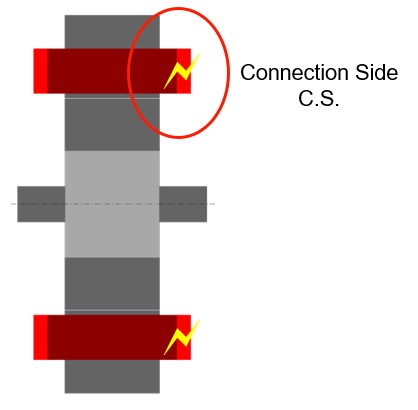

The dimensions are illustrated with arrows.	The connection side (C.S.) is identified by yellow lightning.

Inputs – Validity domain

C.S. diameter (D1) - Connection side end-shaft diameter:]0, 20000] mm
C.S. extension (L1) - Connection side end-shaft extension:]0, 20000] mm
O.C.S. diameter (D2) - Opposite connection side end-shaft diameter:]0, 20000] mm
O.C.S. extension (L2) - Opposite connection side end-shaft extension:]0, 20000] mm
