Outer rotor

Introduction

Regarding the outer rotor machine, in Motor Factory – Design / Shaft area there is one section available: Design.

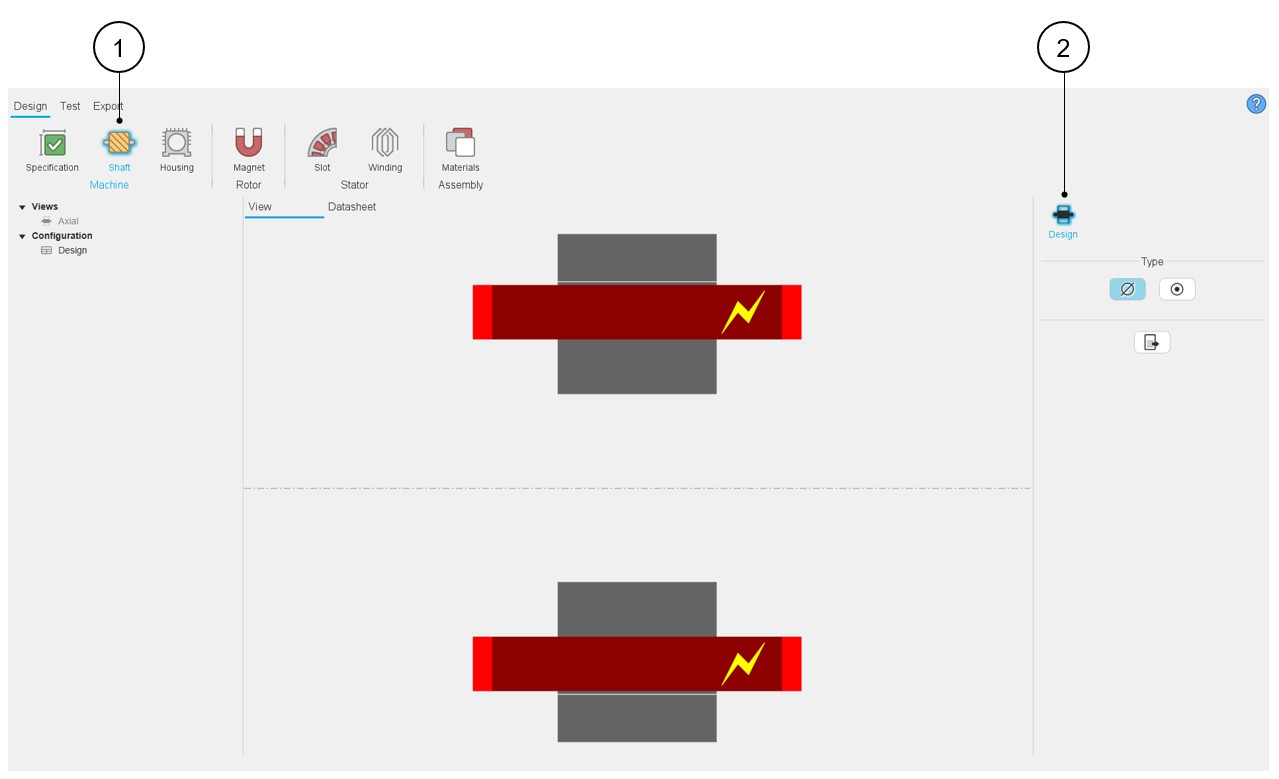

Table 1. Shaft design area dedicated for outer rotor topology

1	Selection of the Machine subset: Shaft panel (Click on the icon Shaft)
2	User inputs. One section allows defining all characteristics that deal with the Shaft: Design.
