Inner rotor

Introduction

Regarding the inner rotor machine, in Motor Factory – Design / Shaft area there are two sections available: Design and Bearing.

Note: Once the housing is designed, the selection of both Design and Bearing is mandatory for accessing the internal cooling topology design area.

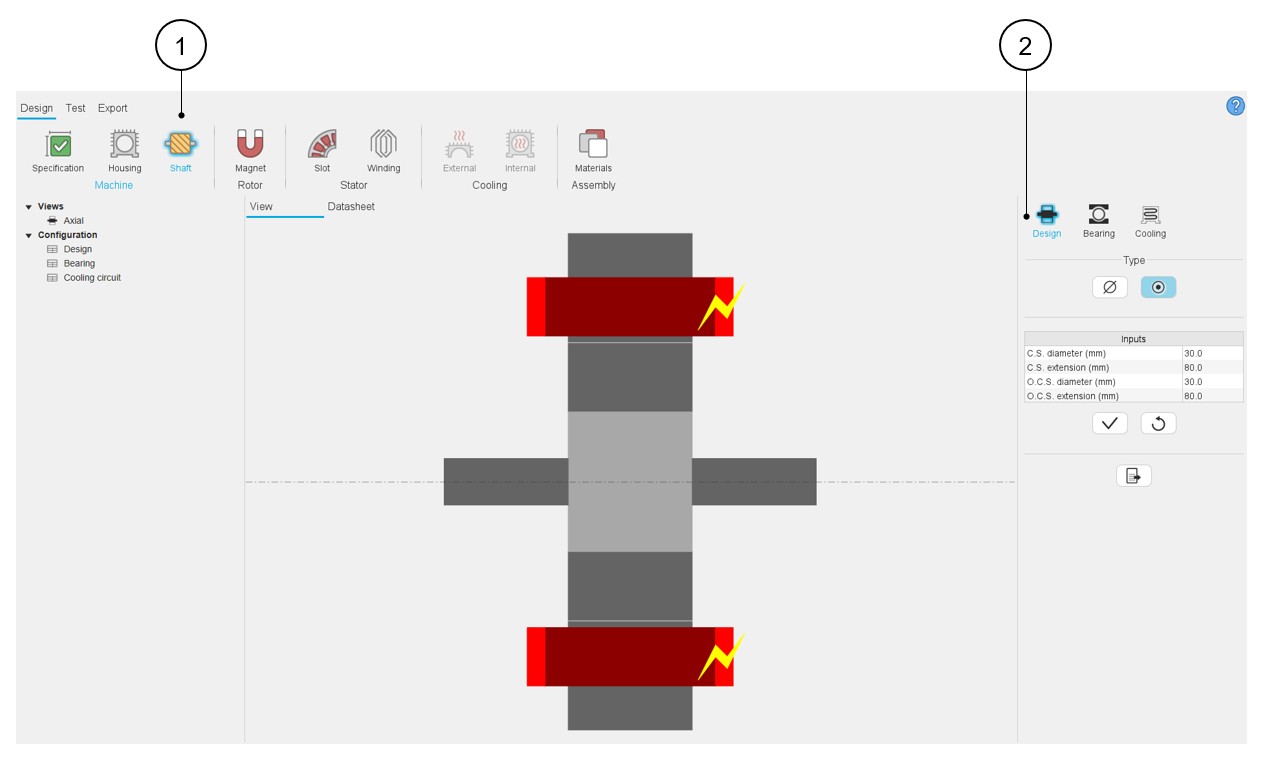

Table 1. Shaft design area dedicated for inner rotor topology

1	Selection of the Machine subset: Shaft panel (Click on the icon Shaft)
2	User inputs. Several sections allow defining all characteristics that deal with the Shaft: Design and bearing. Bearing is available for inner rotor topology but not for outer rotor topology. Note: By default, the section Design is selected.
