Bearing

Introduction

Once the shaft is selected, the section of Bearing is unlocked, meaning that it is possible to access the bearing settings. There are two possible choices:

None: No dimension to declare. There is no bearing.
With bearings: Bearings characteristics must be defined - Structural data of bearings are then edited.

Remember: Once the housing is designed, the selection of both Shaft design and Bearing is mandatory for accessing the internal cooling topology design area.

Type of bearing

Note: When the machine is designed with bearings, they are represented and considered in the rotor design. See the different configurations below.

Table 1. Type of bearing

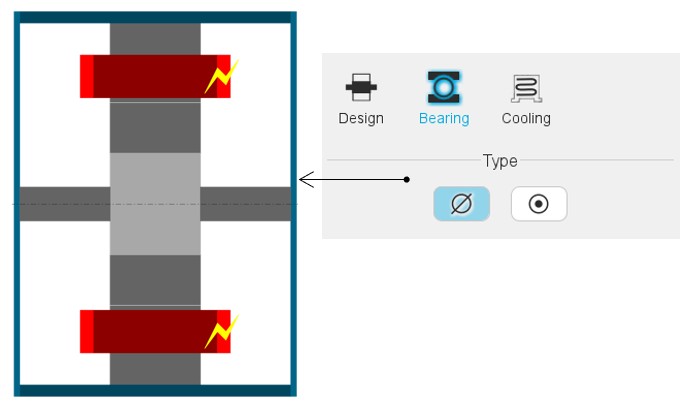

Shaft-Bearing type: None	Shaft-Bearing type: With bearings

Table 2. Type of bearing

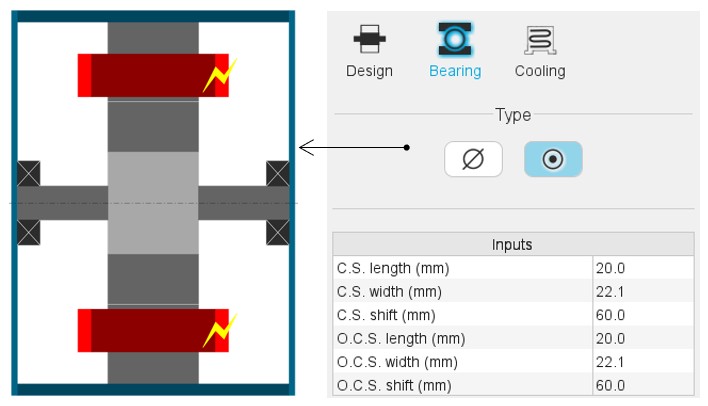

Shaft-Bearing type: None	Shaft-Bearing type: With bearings

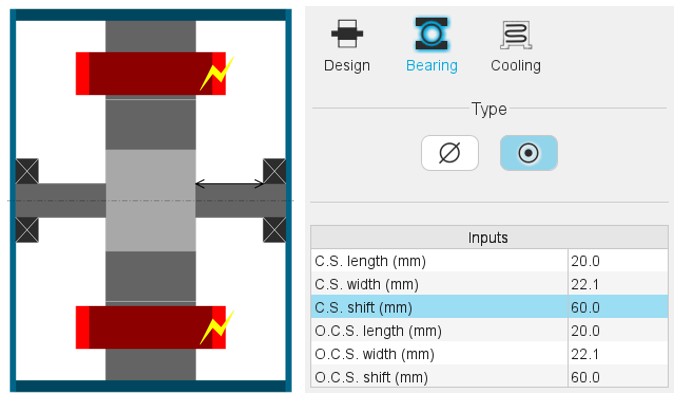

Input parameters – Validity domain

The user inputs dedicated to the definition of bearings are illustrated below.

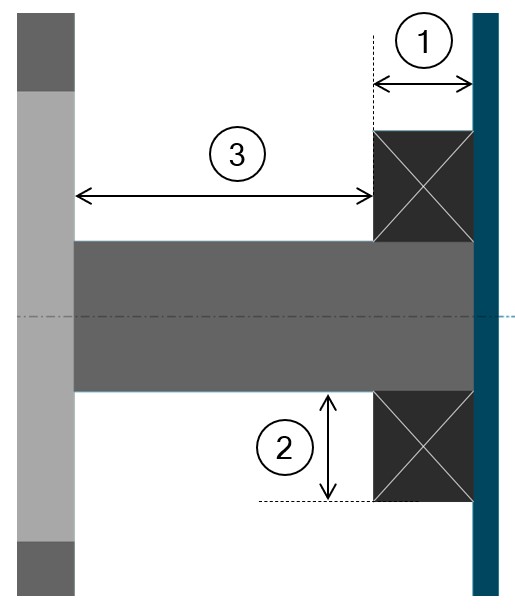

Table 3. User inputs for defining the bearings

1	Bearing length
2	Bearing width
3	Bearing shift

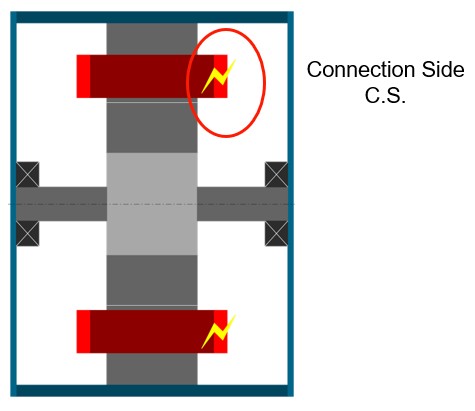

C.S. length - Connection side bearing length:]0, 20000] mm
C.S. width - Connection side bearing width:]0, 20000] mm
C.S. shift - Connection side bearing shift:]0, 20000] mm
O.C.S. length - Opposite Connection side bearing length:]0, 20000] mm
O.C.S. width - Opposite Connection side bearing width:]0, 20000] mm
O.C.S. shift - Opposite Connection side bearing shift:]0, 20000] mm
