RCS and Near Field of a Dielectric Sphere

Calculate the radar cross section and the near field inside and outside of a dielectric sphere using the surface equivalence principle (SEP).

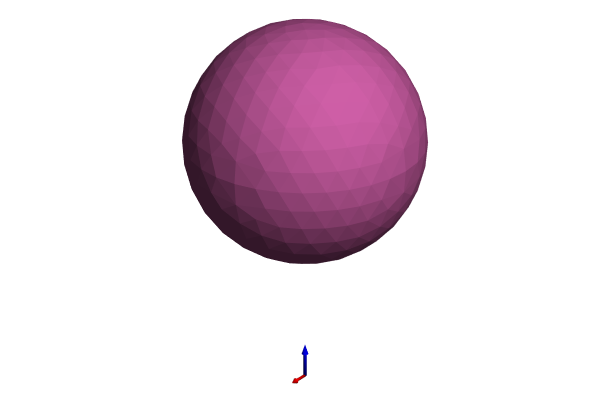

Figure 1. 3D view of a dielectric sphere with a plane wave (source).

The bistatic radar cross section for sphere¹ is computed by:

σ (b i s t a t i c) = \lim_{r \to \infty} [4 π r^{2} \frac{∣ E^{s} ∣^{2}}{∣ E^{i} ∣^{2}}]

Tip: Find the completed model in the application macro library².

¹ C. A. Balanis, Advanced Engineering Electromagnetics, Wiley, 1989, pp. 655.

² The application macro library is located on the Home tab, in the Scripting group. Click the Application Macro icon and from the drop-down list, select Example Guide.
