Viewing the Results

View and post-process the results in POSTFEKO.

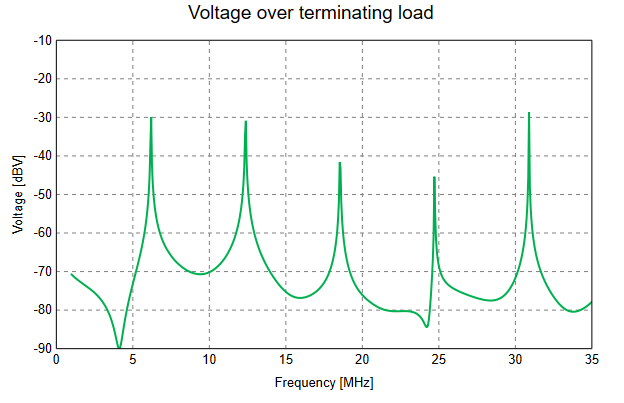

View the voltage over the terminating load on a Cartesian graph.

Figure 1. Voltage induced in a terminated shielded cable by an external source.
