Shielding Factor of a Sphere with Finite Conductivity

Calculate the shielding factor of a hollow sphere with finite conductivity. The sphere is constructed from a lossy metal with a thickness of 2.5 nm.

An incident plane wave is defined from 1 MHz to 100 MHz. Use a single near field point located at the centre of the sphere to compute the shielding factor.

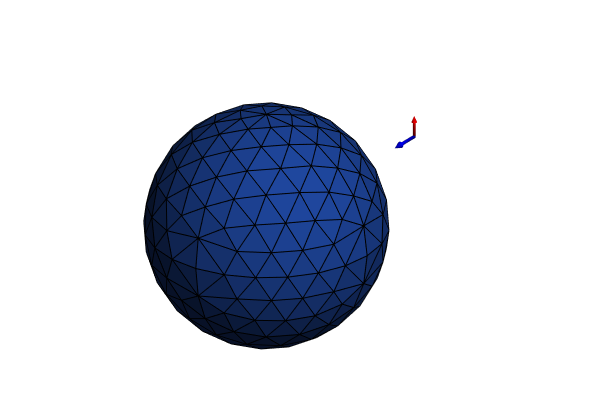

Figure 1. A 3D view of the sphere with a plane wave (source) and symmetry in CADFEKO.

The shielding factor results are compared using the following solution methods:

Method of moments (MoM)
Finite element method (FEM)

Tip: Each model uses its predecessor as a starting point. Create the models in their presentation order. Save each model to a new location to keep them.

Tip: Find the completed models in the application macro library¹.

¹ The application macro library is located on the Home tab, in the Scripting group. Click the Application Macro icon and from the drop-down list, select Example Guide.
