Antenna Coupling Using an Ideal Receiving Antenna

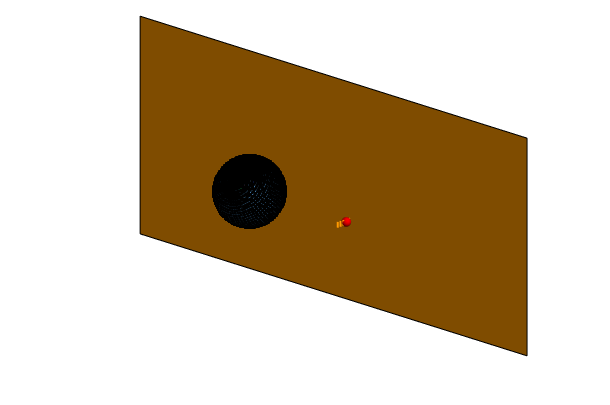

Calculate the coupling between a helix antenna and a Yagi-Uda antenna located in front of a large plate. Reduce computational resources by using the uniform theory of diffraction (UTD) and an ideal receiving antenna.
The receiving antenna is modelled with three equivalent field types:
- far field radiation pattern
- far field spherical modes
- near field aperture
The results will be compared for all three field types.
Note: Equivalent field
sources and receiving antennas are impressed fields and are not influenced by
nearby physical structures.
For accuracy, ensure sufficient distance to the physical structures.
Three models are provided for this example:
- Antenna_Coupling_Helix_Antenna.cfx: Model of the helix antenna used to pre-calculate the three field types that will be used in the ideal receiving antennas.
- Antenna_Coupling_Receiving_Antenna.cfx: Model that calculates the antenna coupling using the ideal receiving antenna types.
- Antenna_Coupling_Full.cfx: Full model for both antennas.

Tip: Find the completed models in the application macro library1.
1 The
application macro library is located on the Home tab, in
the Scripting group. Click the Application
Macro icon and from the drop-down list,
select Example Guide.
