Viewing the Results

View and post-process the results in POSTFEKO.

Create an empty Cartesian graph.
Add the FarFieldReceivingAntenna1 results to the graph.
Add the S-matrix results (S21) to graph.

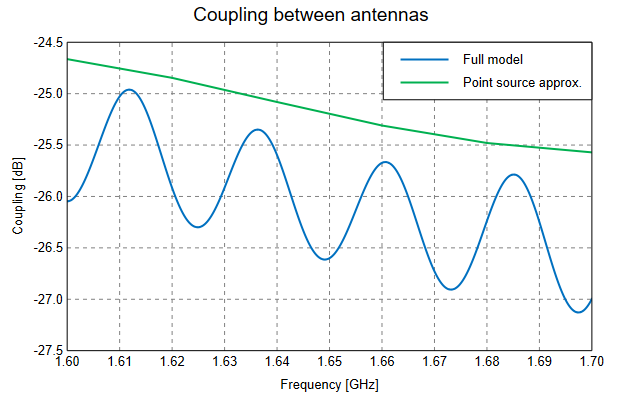

Figure 1. Comparison of the coupling between the antennas using a full solution vs equivalent sources.
