Steps for Set Default MGR

Set Default MGR for Rooms, Hull zones, Stair Trunks

1. Select Functional View > Structure Management.
2. Click on Set Default MGR for Rooms, Hull Zones and Stair Trunks button .

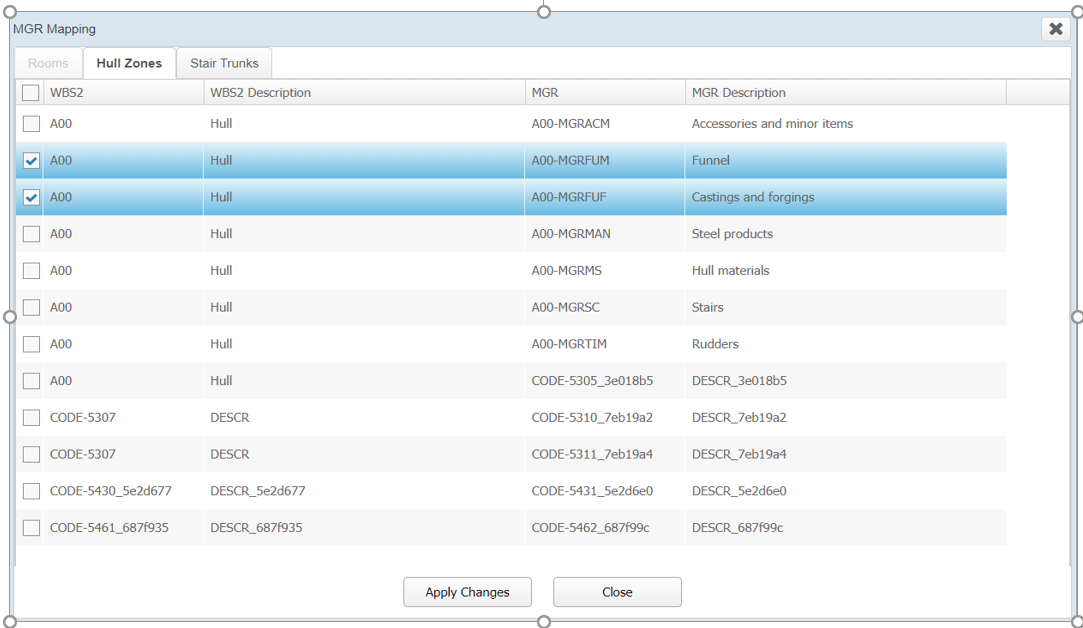

   MGR mapping window will display.



   Note: Set Default MGR for Rooms, Hull zones, Stair Trunks button enable only when user selected node in the tree view exist “Rooms, Hull zones, Stair Trunks node.
