Copy From

Weight Analytics allows you to copy the mapping table and Department mapping from the existing Functional View node to the newly created Functional View.

To copy the mapping table and Department mapping:

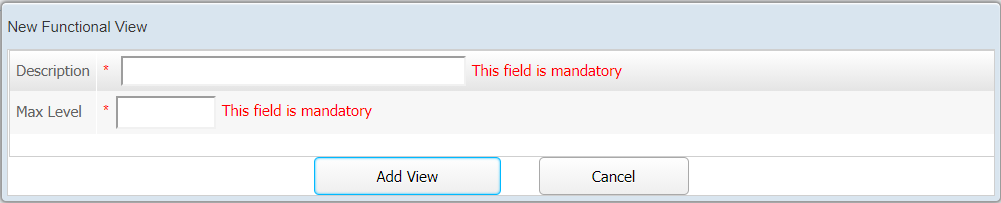

  1. Create a new Functional View.

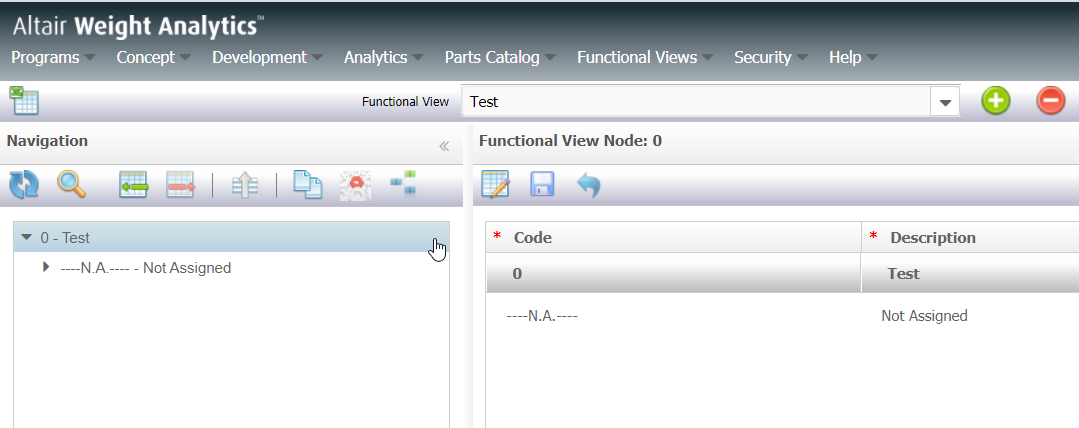

  2. With the cursor at the root level for the newly created Functional View, click the Copy from icon.

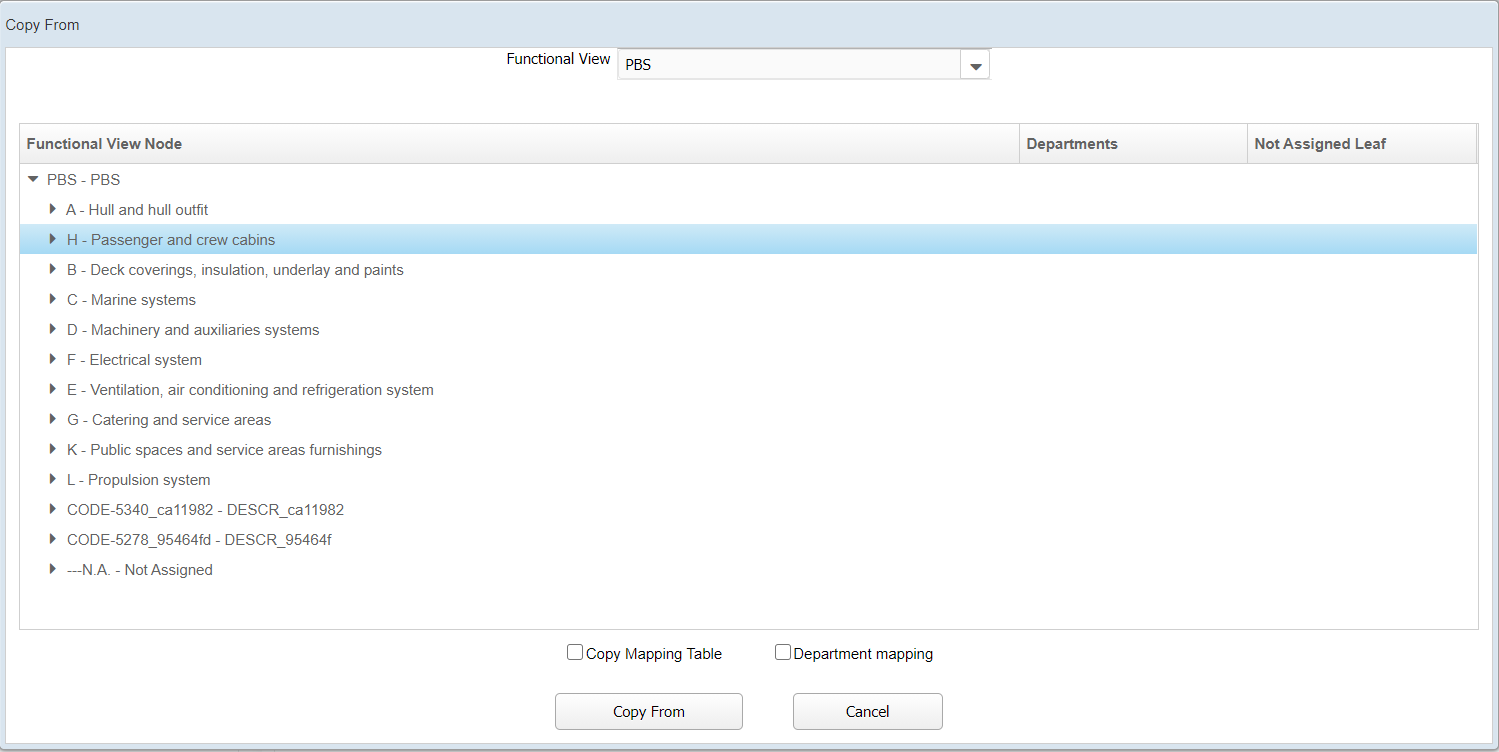

  3. In the Copy From dialog box, select the required level from the tree view.
    The Copy From button is enabled.

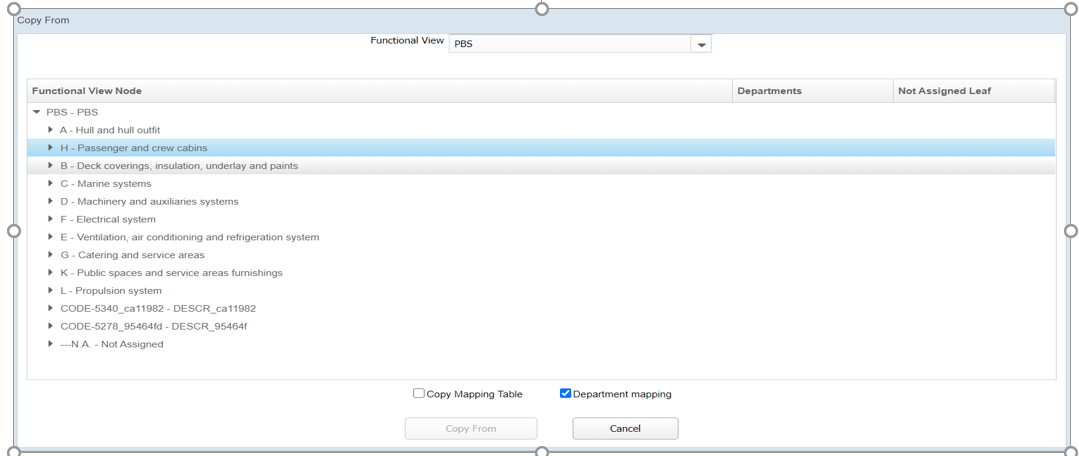

  4. Select the Department mapping checkbox and then click Copy From.

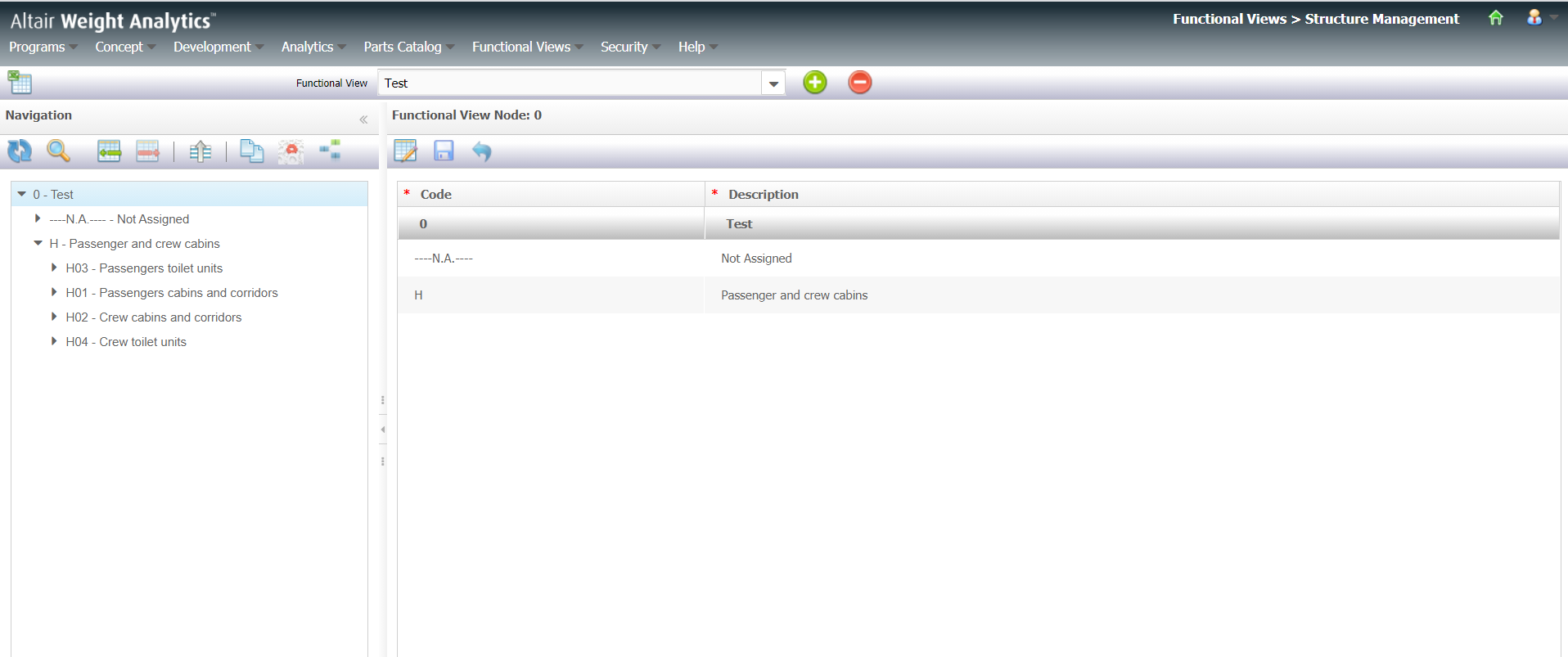

    The selected Functional View is copied to the newly created Functional View.


    Note:
    • The maximum level based on what you have defined is copied while creating the new Functional View.

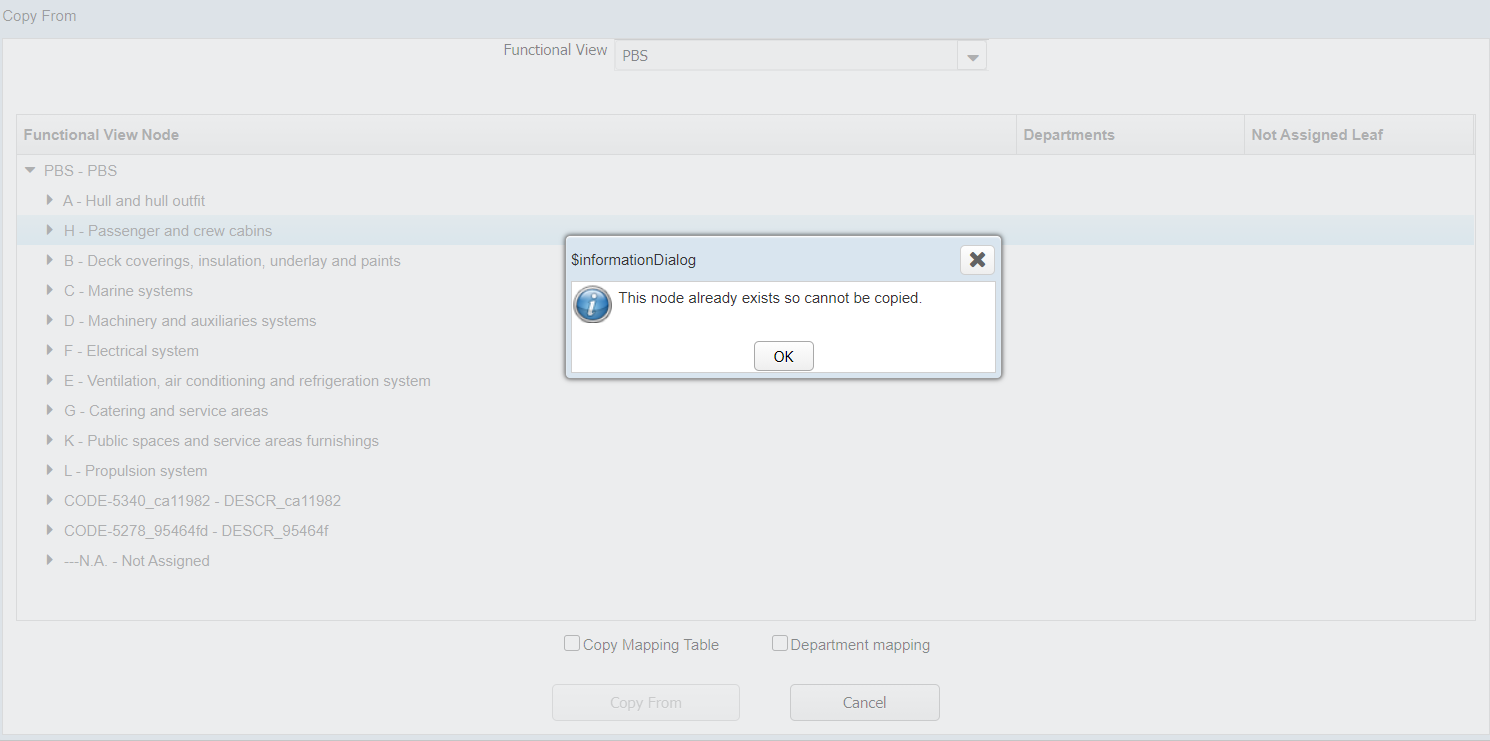

    • If a node already exists and cannot be copied, a message is displayed.

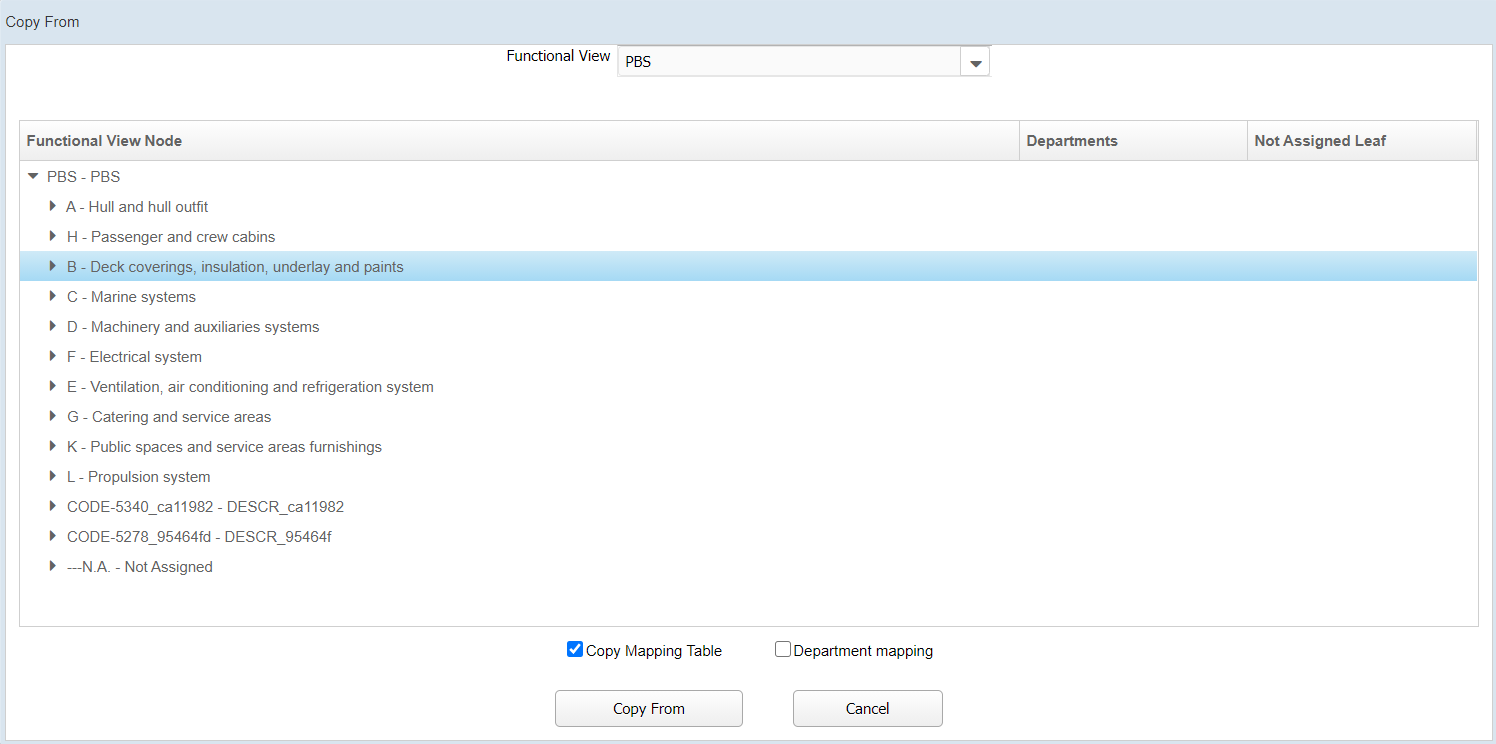

  5. Select the Copy Mapping Table checkbox and click Copy From.

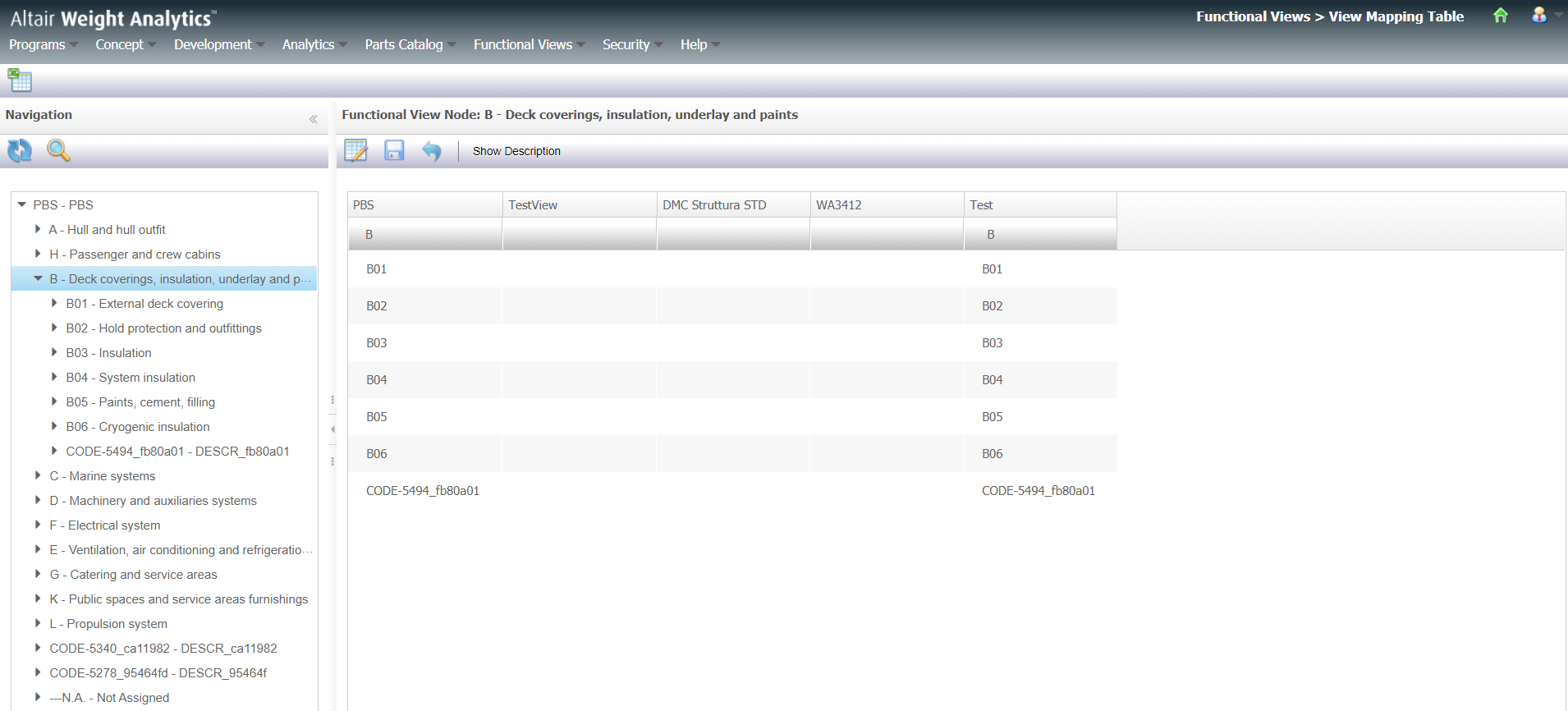

    The selected node Mapping table is copied and can be viewed in the View mapping table.
