WinProp's technologies make the tool applicable to the
planing of both urban and indoor radio networks.
Indoor Radio Network Planning
Process 3D building vector data that includes outer and inner walls, subdivisions
like doors and widows. Specify the construction materials and their electrical
properties or import from a database containing industry standard materials. Analyze
the receiving coverage and throughput (data rate) for WiFi planning or an indoor

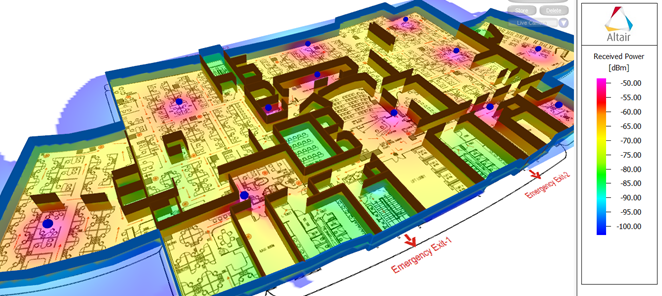

site for a cellular network.Figure 1. An example of an indoor radio network planning.
Urban Scenario Radio Network Planning
Process 3D building vector data superimposed to terrain layer using highly accurate

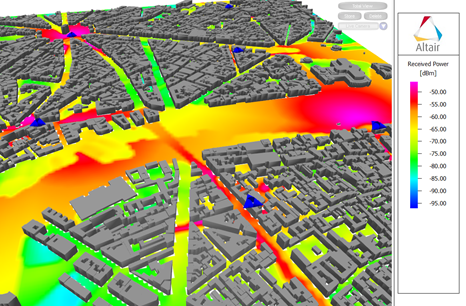

wave propagation models for macro-cells and micro-cells.Figure 2. An example of an urban radio network planning.
