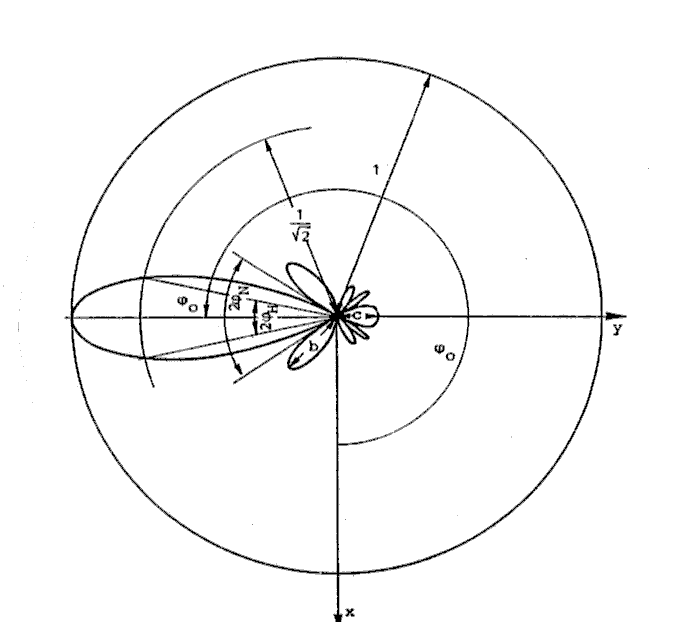

Radiation Pattern Lobes

A radiation pattern lobe is a section of the radiation pattern surrounded by regions of relatively weak radiation intensity.

Major lobe / main beam: The lobe in the radiation pattern containing the direction of maximum radiation.
Side lobe: The lobe in any direction other than the intended lobe and usually represent radiation in undesired directions.
Back lobe: The lobe in the radiation pattern that is in the opposite direction of the major lobe.

Characteristic values:

$20 \log (b)$: Side lobe attenuation
$20 \log (c)$: Back lobe attenuation
$2 φ_{M}$: 3dB angle of main lobe
$2 φ_{S}$: 3dB angle of side lobe
