Specifying Default Values for New Objects

Define the default values for an object. Modify the default values before you create a new object to define objects with different upper and lower coordinates (for example, a window versus a door).

The Default Values for New Objects dialog should be displayed after completing Creating a New Indoor Database.

Specify the default values for new walls.
1. In the Height of walls relative to current plane field, enter a value of 3 m.
2. In the Material Properties of new Walls drop-down list, select Brick; thickness: 10 cm.
Specify the default values for new sub-division material (doors).
1. In the Material Properties of new Subdivisions drop-down list, select Wood (Fir); thickness: 5 cm.

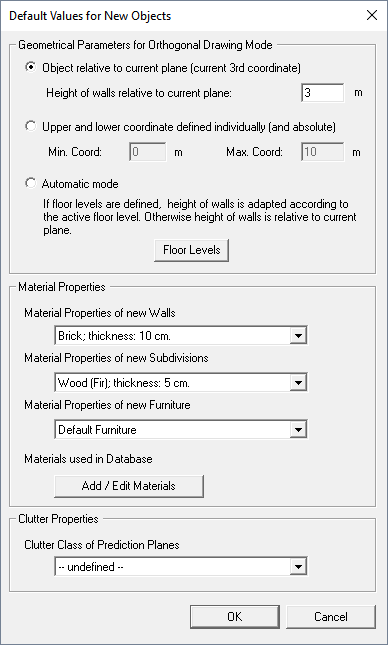

  Figure 1. The Default Values for New Objects dialog.
Click OK to close the Default Values for New Objects dialog.
