Generate Material Card

Define the material solver card properties to create a material card.

Select a fitted curve from the Select Curve list.

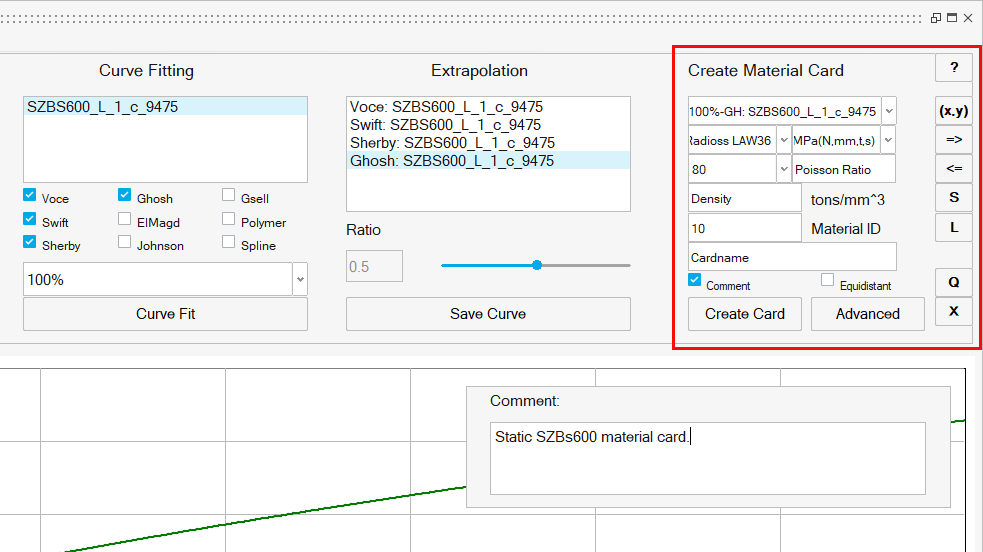

Figure 1. Create Material Card
Select a solver card from the Select LAW list. The following material solver cards are supported:
- LAW36 (Radioss)
- MAT24 (LS-Dyna)
- MATS1 (OptiStruct)
- AutoForm
- Abaqus
- Ansys
Set the desired unit system for the output (Pa, MPa, GPa) and the resolution of the x-axis points (60, 80, 101).
Set the density to the unit system Ton/mm³. This value is converted to the target unit system.
Define the Poisson Ratio.
Select a Material ID.
Enter a name for the card.
Add a comment to the card.
Set the resolution of the x-axis equidistant.
Click Create Card to generate the material card.
