Suppress or Unsuppress Entities

Suppress or unsuppress an entity using the context menu in the Model Browser.

Entities that are suppressed do not appear in the modeling window and are not included in calculations such as optimization, static weight calculations, mass computations, etc.

Tip:

You can remove an entity from the display and include it in calculations by hiding it in your model.
To exclude an entity from analysis, select the entity and select the Ignore for Structural Analysis checkbox in the Property Editor.

Suppress

Suppress an entity using the context menu in the modeling window or in the Model Browser.

Press F2 to open the Model Browser.
Right-click the entity name, and then select Suppress on the context menu.

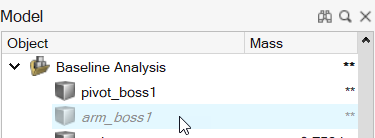

The suppressed entity is displayed in grayed-out, italicized text in the Model Browser and is removed from the modeling window.

Unsuppress

Unsuppress an entity using the context menu in the Model Browser.

Press F2 to open the Model Browser.
Right-click the grayed-out, italicized entity name, and then click Unsuppress on the context menu.

The entity is restored in the model.
