HyperMesh is a software from Altair which is dedicated to the pre-processing. You can find all the tools to achieve your geometry and mesh it.

In this chapter, the steps and advices to export the mesh from HyperMesh and then to import it in Flux are described.

Concerning the mesh coming from OptiStruct which is a postprocessing tool encapsulated in HyperMesh, it is actually a HyperMesh mesh: only the mesh file extension changes.


Go directly to the physical definition and solving.

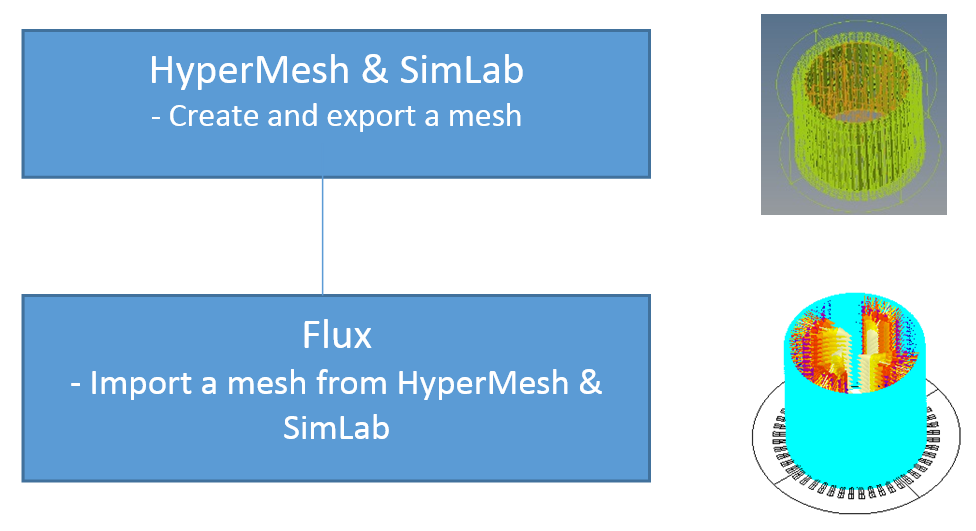

The following synoptic illustrates the different steps described in this workflow document:
