Viewing the Results

Use POSTFEKO to view the results.

Create a Cartesian graph and add the segment currents to the graph.

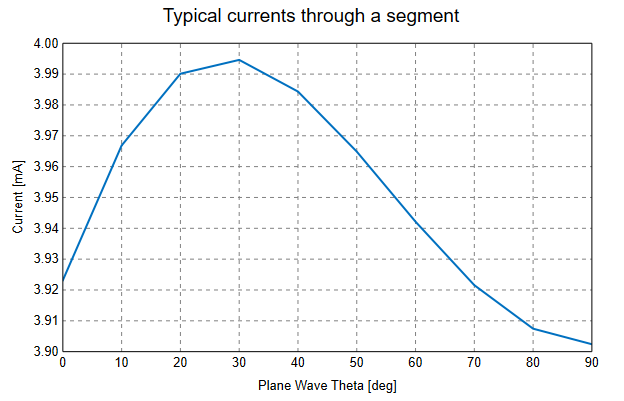

Figure 1. The current in an arbitrary segment vs plane wave source incidence angle.

Note: Each segment will result in a slightly different current as a function of the plane wave source angle of incidence.
