EDEM 2400 Heat Transfer

This intermediate tutorial describes the usage of the Heat Transfer model, and is intended for users who have covered the introductory tutorials, as the initial set-up of the simulation is abbreviated and basic functionality is not explained in detail.

Objective

The objective of this tutorial is to:

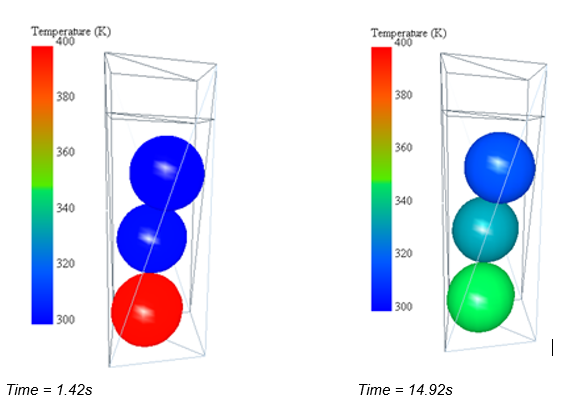

Model heat transfer through conduction between hot and cold particles
Heat transfer through conduction from Geometry
Color particles according to temperature
Add text to the model in the Viewer Window

Note: This tutorial focuses on the heat transfer capabilities using the Heat Transfer model. In this model, heat is transferred through conduction between hot and cold particles in addition to heat transfer from a Geometry heat source. You must download the simulation and associated CAD files before starting the tutorial. To download the simulation files for this tutorial, see Download Simulation Files.

EDEM 2400 Heat Transfer

Objective

Heat Transfer Model Tutorial Video
