EDEM 1010 Screw Auger

This tutorial describes how to set up and analyze an EDEM simulation.

Objective

The objective of the Screw Auger tutorial is to:

Define a domain efficiently to see all the important features in simulation
Analyze particle velocities and contact forces
Set up data export queries and using the copy query option
Extract the relevant data to the spreadsheet using Step Factor data export
Create a video of the completed simulation

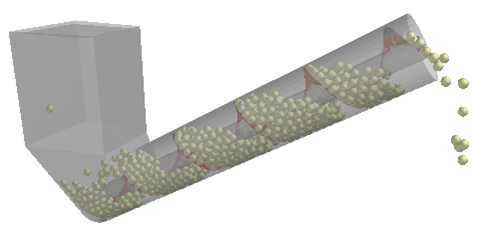

The model used in this tutorial is a screw auger, a machine designed to transport material horizontally or up an incline via a rotating screw blade.

Important: You must download the simulation and associated CAD files before starting the tutorial. To download the simulation files for this tutorial, see Download Simulation Files.

EDEM 1010 Screw Auger

Objective

Screw Auger Tutorial Video
