EDEM 1000 Conveyor

This tutorial describes the basics of EDEM and explains how to set up, run, and analyze a simulation.

Objective

The objective of the Conveyor tutorial is to:

Create materials for Particles and Geometry
Create Particles with a User Defined Size distribution
Create a Multi-Sphere Particle Prototype. Multi-sphere particle shapes are defined using particle CAD templates, which can be imported to EDEM and manually filled with spherical particles
Use Conveyor kinematics, which provides movement and acceleration of the conveyor belt
Create bin groups in the Analyst to analyze particles and their properties in specified regions
Export the simulation data to a .csv (text) file

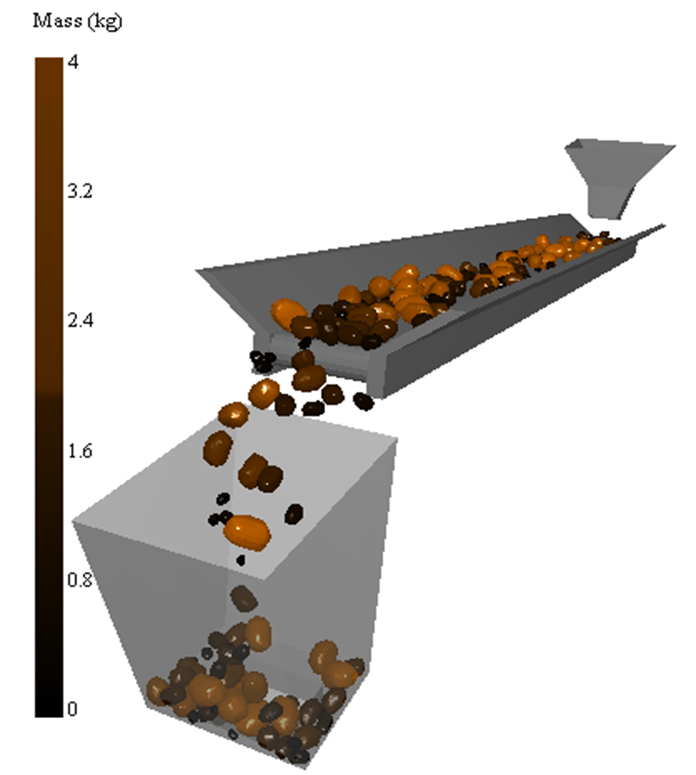

The model used here is a conveyor belt that transports material to a hopper.

Important: You must download the simulation files before starting the tutorial. To download the simulation files for this tutorial, see Download Simulation Files.

EDEM 1000 Conveyor

Objective

Conveyor Tutorial Video
